PFC system HP30-60Hz-480V

Product overview

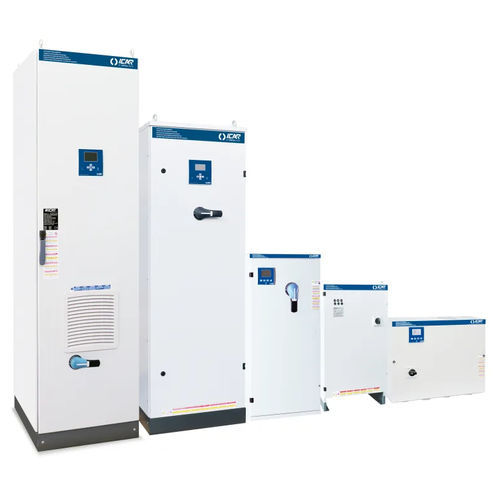

Power factor correction (PFC) system with high-gradient metallized polypropylene capacitors. Designed for 480V, 60Hz electrical networks; supplied as automatic MULTImatic units and EUROrack capacitor racks.

Technical specifications (summary)
Nominal voltage Ue: 480V
Nominal capacitor voltage Un: 480V
Maximum operating voltage Umax: 528V
Frequency: 60 Hz
THDIR%: ≤12%

Automatic PFC system — MULTImatic (selection)

• IN2DGG275060700 | MULTImatic | 75 kVAr | Load break switch 250 A | Icc 15 kA | IP4X | 145 kg
• IN2DGG315060700 | MULTImatic | 150 kVAr | Load break switch 400 A | Icc 15 kA | IP4X | 160 kg
• IN2DGG322560700 | MULTImatic | 225 kVAr | Load break switch 400 A | Icc 15 kA | IP4X | 175 kg
• IN2DGG330060700 | MULTImatic | 300 kVAr | Load break switch 630 A | Icc 28 kA | IP4X | 190 kg
• IN2DGG337560700 | MULTImatic | 375 kVAr | Load break switch 800 A | Icc 28 kA | IP4X | 210 kg
• IN2DGG345060700 | MULTImatic | 450 kVAr | Load break switch 800 A | Icc 28 kA | IP4X | 230 kg
• IN2DGG352560700 | MULTImatic | 525 kVAr | Load break switch 1250 A | Icc 28 kA | IP4X | 270 kg
• IN2DGG360060700 | MULTImatic | 600 kVAr | Load break switch 2x630 A | Icc 28 kA | IP4X | 420 kg
• IN2DGG367560700 | MULTImatic | 675 kVAr | Load break switch 2x630 A | Icc 28 kA | IP4X | 500 kg
• IN2DGG375060700 | MULTImatic | 750 kVAr | Load break switch 2x800 A | Icc 28 kA | IP4X | 520 kg
• IN2DGG382560700 | MULTImatic | 825 kVAr | Load break switch 2x800 A | Icc 28 kA | IP4X | 560 kg
• IN2DGG390060700 | MULTImatic | 900 kVAr | Load break switch 2x800 A | Icc 28 kA | IP4X | 580 kg
• IN2DGG397560700 | MULTImatic | 975 kVAr | Load break switch 2x1250 A | Icc 50 kA | IP4X | 620 kg

Racks — EUROrack (selection)

• IY0SGG225060359 | EUROrack | 25 kVAr | IP00
• IY0SGG250060359 | EUROrack | 50 kVAr | IP00
• IY0SGG275060359 | EUROrack | 75 kVAr | IP00
• IY0SGG310060359 | EUROrack | 100 kVAr | IP00

Features / technical characteristics

• Brand: Ortea Next
• Series: HP30
• Product type: Power factor correction system with high-gradient metallized polypropylene capacitors
• Nominal voltage Ue: 480V
• Nominal capacitor voltage Un: 480V
• Maximum operating voltage Umax: 528V
• Frequency: 60 Hz
• THDIR%: ≤12%
• Available automatic MULTImatic variants (examples in kVAr): 75, 150, 225, 300, 375, 450, 525, 600, 675, 750, 825, 900, 975
• MULTImatic IP degree: IP4X (listed units)
• EUROrack IP degree: IP00 (listed units)
