PFC system FH30-60Hz-400V

Short description

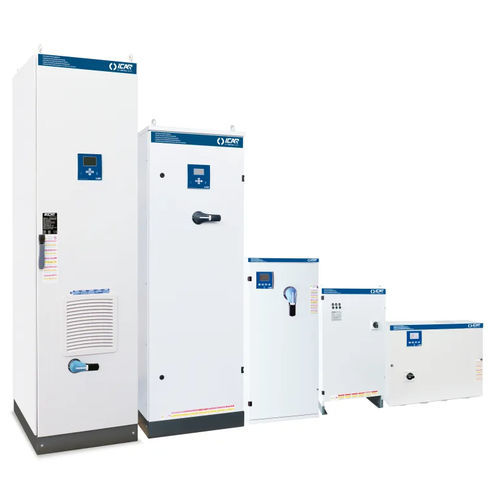

Power factor correction solution using high‑gradient metallized polypropylene capacitors for 400 V, 60 Hz systems. MULTImatic modular versions cover a wide range of reactive powers.

Technical specifications (summary)
Nominal voltage Ue: 400 V
Nominal voltage of the capacitor Un: 480 V
Maximum operating voltage Umax: 528 V
Frequency: 60 Hz
THDIR: 100%
I at 250 Hz: >25%
THDVR: ≤6%
Detuning frequency fD: 162

Available versions / Product table
Part number | Name | Reactive power Ue=400V (kVAr) | Load break switch | Icc | IP degree | Weight (kg)
IN7JFF281060702 | MULTImatic | 81 | 250 | 17 | IP4X | 220
IN7JFF311460702 | MULTImatic | 114 | 250 | 17 | IP4X | 260
IN7JFF314660702 | MULTImatic | 146 | 400 | 25 | IP4X | 300
IN7JFF317960702 | MULTImatic | 179 | 400 | 25 | IP4X | 325
IN7JFF321160702 | MULTImatic | 211 | 630 | 25 | IP4X | 365
IN7JFF324460702 | MULTImatic | 244 | 630 | 25 | IP4X | 385
IN7JFF327660702 | MULTImatic | 276 | 630 | 25 | IP4X | 415
IN7JFF330960702 | MULTImatic | 309 | 800 | 50 | IP4X | 445
IN7JFF334160702 | MULTImatic | 342 | 800 | 50 | IP4X | 475
IN7JFF337460702 | MULTImatic | 374 | 800 | 50 | IP4X | 505
IN7JFF340660702 | MULTImatic | 407 | 2x630 | 25 | IP4X | 775
IN7JFF345560702 | MULTImatic | 455 | 2x630 | 25 | IP4X | 800
IN7JFF352060702 | MULTImatic | 520 | 2x630 | 25 | IP4X | 860
IN7JFF358560702 | MULTImatic | 585 | 2x800 | 50 | IP4X | 920
IN7JFF365060702 | MULTImatic | 650 | 2x800 | 50 | IP4X | 980
IN7JFF371560702 | MULTImatic | 715 | 2x800 | 50 | IP4X | 1040
IN7JFF378060702 | MULTImatic | 780 | 2x800 | 50 | IP4X | 1100

Technical characteristics

• Nominal voltage Ue: 400 V
• Nominal voltage of the capacitor Un: 480 V
• Maximum operating voltage Umax: 528 V
• Frequency: 60 Hz
• THDIR: 100%
• I at 250 Hz: >25%
• THDVR: ≤6%
• Detuning frequency fD: 162
• MULTImatic variants available with reactive powers from 81 to 780 kVAr (Ue=400V)
