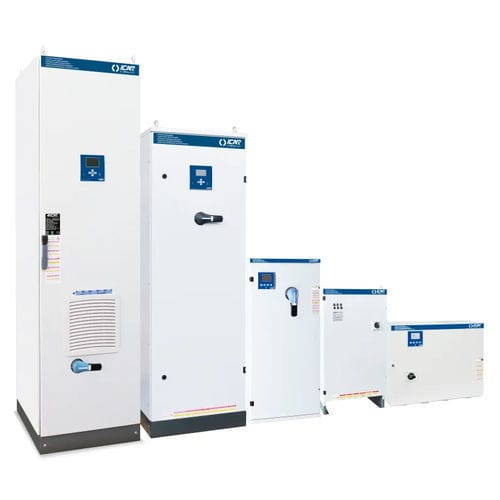

PFC system VP10

Product overview
VP10 series provides power factor correction solutions using high-gradient metallized polypropylene capacitors for 400V industrial networks. Available as fixed PFC modules, automatic controllers, IP55 variants and rack-mounted batteries to cover ranges from 7.5 kVAr to 990 kVAr.

Product families and representative models

• Fixed PFC: SUPERriphaso (example IA3VFF175050001, 7.5 kVAr, IP40, 2.1 kg) and MICROfix (examples IB5VFF215050987 15 kVAr; IB5VFF230050987 30 kVAr)
• Automatic PFC: MICROmatic (examples IC2VFF222050652 22 kVAr; IC2VFF236050652 36 kVAr), MINImatic / MINImatic IP55 (examples IF2VFF237550652 37.5 kVAr IP3X; IJ2VFF275050654 75 kVAr IP55)
• Large automatic systems: MULTImatic / MULTImatic IP55 (examples IN2VFF316550700 165 kVAr; IN2VFF399050700 990 kVAr)
• Racks and batteries: MINIrack and MULTIrack (examples IW2VFF175050000 7.5 kVAr; IX2VFF282550000 82.5 kVAr)

Key technical characteristics

• Nominal voltage Ue: 400 V
• Capacitor nominal voltage Un: 400 V
• Maximum operating voltage Umax: 440 V
• Frequency: 50 Hz
• THDIR: ≤27%
• Reactive power range: 7.5 kVAr to 990 kVAr (depending on series and configuration)
• Available protection classes: IP00, IP3X, IP40, IP4X, IP55

Applications

• Industrial plants and manufacturing lines
• Power distribution and utilities
• Commercial buildings and large HVAC installations
• Any 400V network requiring reactive power compensation and harmonic management

Documentation
Technical datasheets are available for each part number. Consult the product list or contact the supplier for the specific list card; no direct links are provided here.
