PFC system HP10

Overview

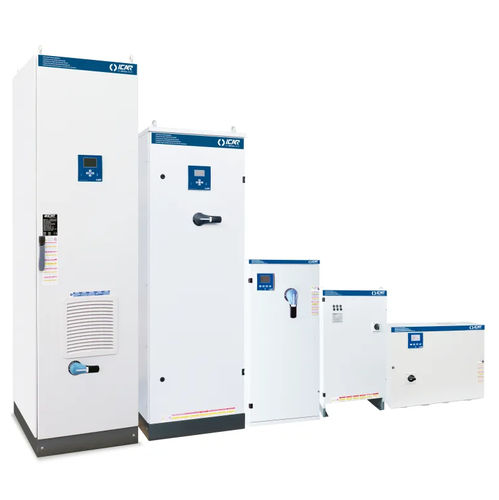

HP10 is a modular range of low-voltage power factor correction (PFC) solutions based on high-gradient metallized polypropylene capacitors. The series includes fixed and automatic compensation systems and matching racks, covering a wide span of reactive power ratings and protection classes for industrial applications.

Technical specifications (summary)
Nominal voltage Ue: 400-415 V
Nominal voltage of the capacitor Un: 415 V
Maximum operating voltage Umax: 455 V
Frequency: 50 Hz
THDIR%: ≤12%

Fix PFC system — MICROfix (selection)
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IB3DKK211050987 | MICROfix | 11 | 10 | 40 | 50 | IP3X | 9
IB3DKK216550987 | MICROfix | 16.5 | 15 | 40 | 50 | IP3X | 12
IB3DKK222050987 | MICROfix | 22 | 20 | 80 | 50 | IP3X | 13
IB3DKK233050987 | MICROfix | 33 | 30 | 80 | 50 | IP3X | 15
IB3DKK243050987 | MICROfix | 43 | 40 | 125 | 50 | IP3X | 18
IB3DKK254050987 | MICROfix | 54 | 50 | 125 | 50 | IP3X | 20

Automatic PFC system — MICROmatic
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IC0AKF214050652 | MICROmatic | 14 | 12.6 | 63 | 50 | IP3X | 12
IC0AKF220050652 | MICROmatic | 20 | 18 | 63 | 50 | IP3X | 13
IC0AKF228050652 | MICROmatic | 28 | 25.2 | 80 | 50 | IP3X | 14
IC0AKF236050652 | MICROmatic | 36 | 32.4 | 100 | 50 | IP3X | 18
IC0AKF244050652 | MICROmatic | 44 | 39.6 | 100 | 50 | IP3X | 22
IC0AKF252050652 | MICROmatic | 52 | 46.8 | 125 | 50 | IP3X | 24
IC0AKF260050652 | MICROmatic | 60 | 54 | 125 | 50 | IP3X | 26
IC0AKF272050652 | MICROmatic | 72 | 64.8 | 160 | 50 | IP3X | 28

Automatic PFC system — MINImatic
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IF0AKF280050652 | MINImatic | 80 | 75 | 250 | 9 | IP3X | 41
IF0AKF311250652 | MINImatic | 112 | 105 | 250 | 9 | IP3X | 47
IF0AKF313650652 | MINImatic | 136 | 125 | 315 | 9 | IP3X | 51
IF0AKF316050652 | MINImatic | 160 | 150 | 315 | 9 | IP3X | 54
IF0AKF319250652 | MINImatic | 192 | 180 | 400 | 9 | IP3X | 60
IF0AKF321650652 | MINImatic | 216 | 200 | 500 | 9 | IP3X | 65
IF0AKF324050652 | MINImatic | 240 | 225 | 500 | 9 | IP3X | 69

Automatic PFC system — MINImatic IP55
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IJ0AKF280050654 | MINImatic IP55 | 80 | 75 | 250 | 9 | IP55 | 41
IJ0AKF311250654 | MINImatic IP55 | 112 | 105 | 250 | 9 | IP55 | 47
IJ0AKF313650654 | MINImatic IP55 | 136 | 125 | 315 | 9 | IP55 | 51
IJ0AKF316050654 | MINImatic IP55 | 160 | 150 | 315 | 9 | IP55 | 54
IJ0AKF319250654 | MINImatic IP55 | 192 | 180 | 400 | 9 | IP55 | 60
IJ0AKF321650654 | MINImatic IP55 | 216 | 200 | 500 | 9 | IP55 | 65
IJ0AKF324050654 | MINImatic IP55 | 240 | 225 | 500 | 9 | IP55 | 69

Automatic PFC system — MIDImatic
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IL0FKF327550884 | MIDImatic | 275 | 255 | 630 | 25 | IP3X | 170
IL0FKF332050884 | MIDImatic | 320 | 300 | 800 | 30 | IP3X | 185
IL0FKF340050884 | MIDImatic | 400 | 375 | 800 | 30 | IP3X | 200
IL0FKF348050884 | MIDImatic | 480 | 450 | 1000 | 30 | IP3X | 220

Automatic PFC system — MULTImatic
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IN0AKF332050700 | MULTImatic | 320 | 300 | 800 | 50 | IP4X | 190
IN0AKF340050700 | MULTImatic | 400 | 375 | 1250 | 50 | IP4X | 210
IN0AKF348050700 | MULTImatic | 480 | 450 | 1250 | 50 | IP4X | 230
IN0AKF356050700 | MULTImatic | 560 | 525 | 1250 | 50 | IP4X | 270
IN0AKF364050700 | MULTImatic | 640 | 600 | 2x800 | 50 | IP4X | 420
IN0AKF372050700 | MULTImatic | 720 | 675 | 2x1250 | 50 | IP4X | 500
IN0AKF380050700 | MULTImatic | 800 | 750 | 2x1250 | 50 | IP4X | 520
IN0AKF388050700 | MULTImatic | 880 | 825 | 2x1250 | 50 | IP4X | 560
IN0AKF396050700 | MULTImatic | 960 | 900 | 2x1250 | 50 | IP4X | 580
IN0AKF410450700 | MULTImatic | 1040 | 975 | 2x1250 | 50 | IP4X | 620
IN0AKF411250700 | MULTImatic | 1120 | 1050 | 2x1250 | 50 | IP4X | 660

Automatic PFC system — MULTImatic IP55
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight
IP0AKF332050700 | MULTImatic IP55 | 320 | 300 | 800 | 50 | IP55 | 190
IP0AKF340050700 | MULTImatic IP55 | 400 | 375 | 1250 | 50 | IP55 | 210
IP0AKF348050700 | MULTImatic IP55 | 480 | 450 | 1250 | 50 | IP55 | 230
IP0AKF356050700 | MULTImatic IP55 | 560 | 525 | 1250 | 50 | IP55 | 270
IP0AKF364050700 | MULTImatic IP55 | 640 | 600 | 2x800 | 50 | IP55 | 420
IP0AKF372050700 | MULTImatic IP55 | 720 | 675 | 2x1250 | 50 | IP55 | 500
IP0AKF380050700 | MULTImatic IP55 | 800 | 750 | 2x1250 | 50 | IP55 | 520
IP0AKF388050700 | MULTImatic IP55 | 880 | 825 | 2x1250 | 50 | IP55 | 560
IP0AKF396050700 | MULTImatic IP55 | 960 | 900 | 2x1250 | 50 | IP55 | 580
IP0AKF310450700 | MULTImatic IP55 | 1040 | 975 | 2x1250 | 50 | IP55 | 620
IP0AKF311250700 | MULTImatic IP55 | 1120 | 1050 | 2x1250 | 50 | IP55 | 660

Racks — MINIrack
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | Weight
IW0AKK216050000 | MINIrack | 16 | 15 | IP00 | 4
IW0AKK232050000 | MINIrack | 32 | 30 | IP00 | 6
IW0AKK256050000 | MINIrack | 56 | 52.5 | IP00 | 11
IW0AKK280050268 | MINIrack | 80 | 75 | IP00 | 13
IW0AKK280050000 | MINIrack | 80 | 75 | IP00 | 14

Racks — MULTIrack
Columns: Part number | Name | Reactive power Ue=415V | Reactive power Ue=400V | IP degree | Weight
IX0AKK280050000 | MULTIrack | 80 | 75 | IP00 | 19
IX0AKK316050000 | MULTIrack | 160 | 150 | IP00 | 27

Racks — EUROrack
Columns: Part number | Name | Reactive power Ue=415V | IP degree
IY0AKK225050359 | EUROrack | 25 | IP00
IY0AKK250050359 | EUROrack | 50 | IP00
IY0AKK275050359 | EUROrack | 75 | IP00
IY0AKK310050359 | EUROrack | 100 | IP00
IY0AKK312550359 | EUROrack | 125 | IP00
IY0AKK315050359 | EUROrack | 150 | IP00

Notes
HP10 provides a broad set of fixed and automatic PFC configurations (MICROfix, MICROmatic, MINImatic, MINImatic IP55, MIDImatic, MULTImatic, MULTImatic IP55) and compatible racks (MINIrack, MULTIrack, EUROrack). Available variants differ by reactive power rating, load-break switch sizing, short-circuit current rating (Icc), protection class (IP) and weight. Detailed datasheets are available per configuration.

Characteristics / technical specifications

• Nominal voltage (Ue): 400-415 V
• Nominal voltage of the capacitor (Un): 415 V
• Maximum operating voltage (Umax): 455 V
• Frequency: 50 Hz
• THDIR%: ≤12%
• Capacitor technology: metallized polypropylene
• Product families: MICROfix, MICROmatic, MINImatic, MINImatic IP55, MIDImatic, MULTImatic, MULTImatic IP55
• Reactive power range: from approx. tens of kVAr up to >1000 kVAr depending on series
• Load-break switch ratings: 40 A up to multiple x1250 A depending on model
• Icc values provided per model
• IP protection classes: IP00, IP3X, IP4X, IP55 (model dependent)
• Weight specified per model
