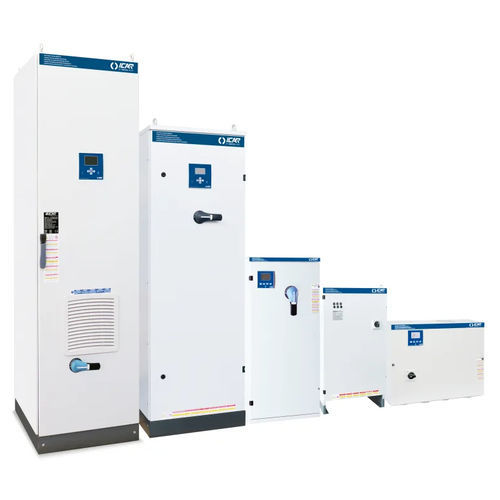

PFC system FV40-60Hz-480V

Product overview
Modular power factor correction solution for industrial 480 V, 60 Hz networks using high-gradient metallized polypropylene plus capacitors. Model FV40 integrates with MULTImatic control modules to provide selectable reactive power stages for network compensation.

Technical specifications (table)
Nominal voltage Ue: 480 V
Nominal voltage of the capacitor Un: 550 V
Maximum operating voltage Umax: 600 V
Frequency: 60 Hz
THDIR%: 100%
I250Hz%: ≤25%
THDVR%: ≤6%
Detuning frequency fD: 216 Hz

Available configurations - MULTImatic (table)
Part number | Name | Reactive power (Ue=480V) | Load break switch | Icc | IP degree | Weight
IN5TGG311060701 | MULTImatic | 110 | 250 | 15 | IP4X | 315
IN5TGG315460701 | MULTImatic | 154 | 400 | 15 | IP4X | 380
IN5TGG319860701 | MULTImatic | 198 | 400 | 15 | IP4X | 460
IN5TGG324260701 | MULTImatic | 242 | 630 | 28 | IP4X | 520
IN5TGG326460701 | MULTImatic | 264 | 630 | 28 | IP4X | 580
IN5TGG330860701 | MULTImatic | 308 | 2x400 | 15 | IP4X | 740
IN5TGG333060701 | MULTImatic | 330 | 2x400 | 15 | IP4X | 770
IN5TGG335260701 | MULTImatic | 352 | 2x400 | 15 | IP4X | 800
IN5TGG339660701 | MULTImatic | 396 | 2x630 | 28 | IP4X | 860
IN5TGG344060701 | MULTImatic | 440 | 2x630 | 28 | IP4X | 920
IN5TGG348460701 | MULTImatic | 484 | 2x630 | 28 | IP4X | 980
IN5TGG352860701 | MULTImatic | 528 | 2x630 | 28 | IP4X | 1040

Features / technical specifications

• Nominal voltage Ue: 480 V
• Nominal capacitor voltage Un: 550 V
• Maximum operating voltage Umax: 600 V
• Designed for 60 Hz industrial networks
• THDIR: 100%
• I250Hz: ≤25%
• THDVR: ≤6%
• Detuning frequency fD: 216 Hz
• MULTImatic configurations cover reactive power range 110–528 (Ue=480 V) with various load break switch and Icc ratings
