Choked PFC system FV35

Overview

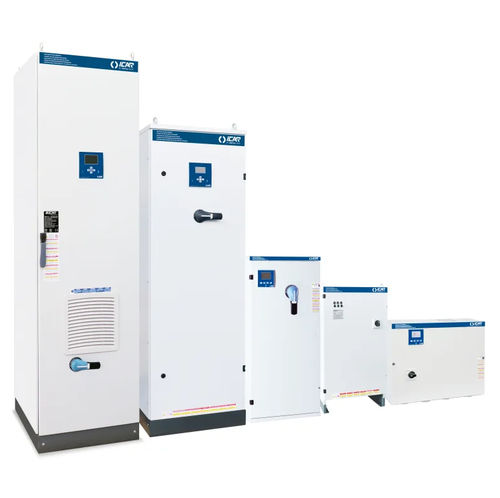

Detuned automatic power factor correction (PFC) system using high-gradient metallized polypropylene PLUS capacitors. Designed for industrial 400 V networks to improve power factor, limit harmonic resonance and ensure stable reactive power compensation in presence of harmonics.

Technical specifications

• Nominal system voltage (Ue): 400 V
• Capacitor nominal voltage (Un): 550 V
• Maximum operating voltage (Umax): 600 V
• Frequency: 50 Hz
• THDIR: 100%
• I250Hz: >25%
• THDVR: ≤6%
• Detuning frequency (fD): 135 Hz

Detuned automatic PFC systems — MULTImatic (examples)
Part number | Name | Reactive power Ue=400V | Load break switch | Icc | IP degree | Weight | Datasheet
IN5LFF260050702 | MULTImatic | 60 kVAr | 250 | 17 | IP4X | 250 | Datasheet available (PDF)
IN5LFF310050702 | MULTImatic | 100 kVAr | 250 | 17 | IP4X | 315 | Datasheet available (PDF)
IN5LFF314050702 | MULTImatic | 140 kVAr | 400 | 25 | IP4X | 380 | Datasheet available (PDF)
IN5LFF320050702 | MULTImatic | 200 kVAr | 630 | 25 | IP4X | 460 | Datasheet available (PDF)
IN5LFF324050702 | MULTImatic | 240 kVAr | 630 | 25 | IP4X | 520 | Datasheet available (PDF)
IN5LFF328050702 | MULTImatic | 280 kVAr | 2x400 | 25 | IP4X | 740 | Datasheet available (PDF)
IN5LFF332050702 | MULTImatic | 320 kVAr | 2x630 | 25 | IP4X | 800 | Datasheet available (PDF)
IN5LFF336050702 | MULTImatic | 360 kVAr | 2x630 | 25 | IP4X | 860 | Datasheet available (PDF)
IN5LFF340050702 | MULTImatic | 400 kVAr | 2x630 | 25 | IP4X | 920 | Datasheet available (PDF)
IN5LFF344050702 | MULTImatic | 440 kVAr | 2x630 | 25 | IP4X | 980 | Datasheet available (PDF)
IN5LFF348050702 | MULTImatic | 480 kVAr | 2x630 | 25 | IP4X | 1040 | Datasheet available (PDF)

Detuned racks — MULTIrack (examples)
Part number | Name | Reactive power Ue=400V | IP degree | Weight | Datasheet
IX5LFF220050009 | MULTIrack | 20 kVAr | IP00 | 38 | Datasheet available (PDF)
IX5LFF240050009 | MULTIrack | 40 kVAr | IP00 | 62 | Datasheet available (PDF)

Notes
Datasheets and configuration sheets (PDF) are available for each referenced part number. For selection, installation and harmonic studies, contact technical sales to define the appropriate MULTImatic or MULTIrack configuration for your installation.
