Choked PFC system FH30

Overview
FH30 is a modular detuned power factor correction solution based on high‑gradient metallized polypropylene capacitors. The range provides configurations with blocking reactors to limit resonance and ensure compatibility with industrial low‑voltage networks.

Technical specifications
Nominal voltage Ue: 400–415 V
Capacitor nominal voltage Un: 550 V
Maximum operating voltage Umax: 600 V
Frequency: 50 Hz
THDIR: 100%
I250Hz: >25%
THDVR: ≤6%
Detuning frequency fD: 135 Hz

Available configurations

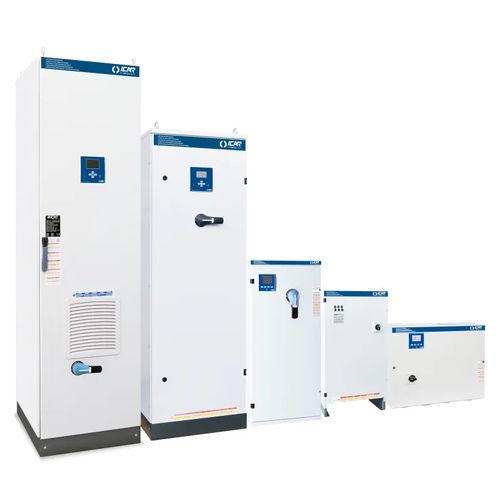

MINImatic, MULTImatic, MULTImatic IP55, MINIrack, MULTIrack, EUROrack.
Reactive power range: 5.5 kVAr – 1027 kVAr depending on model and configuration.

Typical applications
Industrial low‑voltage networks requiring harmonic‑mitigated power factor correction, such as manufacturing plants, HVAC installations, motor control centres and distribution panels.

Ordering and documentation
Each configuration is identified by product codes and selectable load‑break switches or disconnectors. Detailed model tables and technical datasheets (list cards) are available in PDF format on the product page or on request.

Characteristics / technical data

• Product family: FH30
• Application: Power factor correction with metallized polypropylene capacitors
• Nominal voltage Ue: 400–415 V
• Capacitor nominal voltage Un: 550 V
• Maximum operating voltage Umax: 600 V
• Operating frequency: 50 Hz
• THDIR: 100%
• I250Hz: >25%
• THDVR: ≤6%
• Detuning frequency fD: 135 Hz
