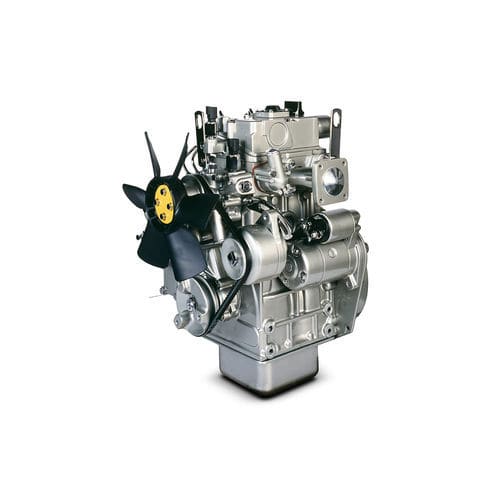

Diesel engine 402D-05G

2-cylinderwater coolingTier 3

Overview
Perkins 400 Series electric power (EP) engines provide compact, economical and reliable power for generator sets. The Perkins 402D-05G is the smallest model in the range: a 0.5 litre two-cylinder unit engineered for low running costs, straightforward installation and strong cold-start performance. The engine complies with EU Stage IIIA and U.S. EPA Tier 3 emissions regulations and is suitable for prime and standby applications, including regions with less stringent emissions control.

Features At A Glance

• Lower operating costs — Simple, durable design with 500-hour oil/filter change interval (dependent on load) and a common platform that simplifies upgrades and reduces spare parts costs.
• Small package — Compact dimensions and adaptable component layout ease integration into small genset applications and simplify maintenance.

Top specifications
Gross Mechanical Output: 4.6–5.1 kWm
Typical Electrical Output: 4.8–5.3 kVA (3.9–4.2 kWe)
Rated Speed: 1800 rpm
Emissions: EU Stage IIIA / U.S. EPA Tier 3

60 Hz Typical Electrical Output
Prime: 3.9 kWe
Standby: 4.2 kWe

Standard Equipment (selected)

• Air inlet system: Mounted air filter
• Control system: 12 V electronic shut-off solenoid (ESOS) energised to run; 12 V starter motor and 12 V 14 A alternator; glow plug cold-start aid and heater/starter switch; oil pressure and coolant temperature switches
• Cooling system: Thermostatically controlled with belt-driven coolant pump and pusher fan; radiator and hoses supplied separately
• Flywheel and housing: High-inertia flywheel options for 1500/1800 rpm and 3000 rpm to SAE J620 Size 6½ with corresponding housings
• Fuel system: Mechanically governed cassette injection pump; split-element fuel filter
• Oil system: Wet steel sump with filler and dipstick; spin-on full-flow oil filter

ElectropaK dimensions & weights
Length: 571 mm
Width: 442 mm
Height: 625 mm
Dry weight: 73 kg

Notes
Final dimensions depend on selected options. The ESE (1800 rpm) designation refers to Emergency Stationary Equipment.
