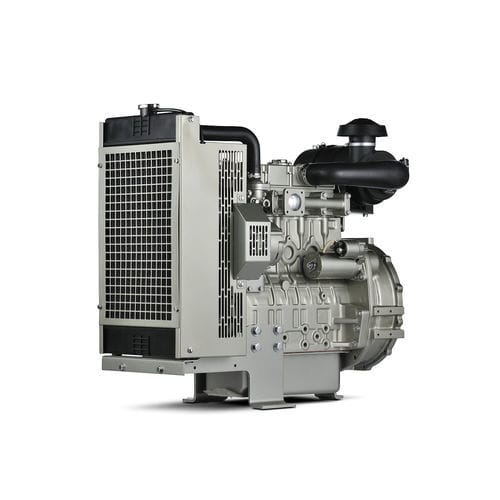

Diesel engine 404D-22G

4-cylinderin-linefor generator sets

Overview
The Perkins 404 range of electric power (EP) engines is the most refined member of the 400 Series for generator set applications. The 4-cylinder, 2.2 litre 404D-22G delivers reduced noise, vibration and harshness (NVH) while offering reliability, cold-start capability, low operating costs and compact design suitable for unregulated, UN ECE R96 Stage IIIA constant speed and U.S. EPA Stationary Emergency Engine territories.

Features At A Glance

• A lifetime of low cost — Reliability, excellent fuel economy, simple installation and proven components minimise total cost of ownership. Cost-saving aftertreatment options are available.
• Powerful, quiet and refined — Provides typical 20–26 kVA generator output with the refinement and noise reduction of a 4-cylinder layout; suitable for installations where acoustic performance is important.

Key Specs

• Gross Mechanical Output: 18-24 kWm
• Typical Electrical Output: 20-26 kVA (16-21 kWe)
• Emissions: UN ECE R96 Stage IIIA constant speed and U.S. EPA Stationary Emergency Engine

Standard Equipment (selected)

• Air inlet system: mounted air filter
• Control system: 12 volt Electronic Shut Off Solenoid (ESOS) energised to run
• 12 volt starter motor and 12 volt 14 amp alternator with DC output
• Glow plug cold start aid and heater/starter switch
• Oil pressure and coolant temperature switches
• Cooling system: thermostatically controlled with belt-driven coolant pump and pusher fan; mounted radiator, piping and guards
• Flywheel and housing: 1500/1800 rpm high inertia flywheel to SAE J620 size 7½ (heavy housing SAE 4 long); 3000 rpm high inertia flywheel to SAE J620 size 7½ (light housing SAE 4 short)
• Fuel system: mechanically governed cassette type fuel injection pump; split element fuel filter
• General: front and rear engine mounting brackets
• Oil system: wet steel sump with filler and dipstick; spin-on full flow lubricating oil filter

Technical specifications

• Total Power Range
  Gross Mechanical Output: 18-24 kWm
  Typical Electrical Output: 20-26 kVA (16-21 kWe)
  Rated Speed: 1500 / 1800 rpm
• Emission Standards
  UN ECE R96 Stage IIIA constant speed and U.S. EPA Stationary Emergency Engine
• 50 Hz Typical Electrical Output
  Prime: 20.3 kVA
  Standby: 22.1 kVA
• 60 Hz Typical Electrical Output
  Prime: 19.2 kWe
  Standby: 21.3 kWe
• General
  Number of Cylinders: 4 inline
  Bore: 84 mm
  Stroke: 100 mm
  Displacement: 2.2 l
  Compression Ratio: 23.3:1
  Aspiration: Naturally aspirated
  Combustion System: Indirect injection
  Rotation from Flywheel End: Anti-clockwise
  Cooling System: Liquid
  Aftertreatment: -
  Typical Alternator Efficiency: 87-89%
  Switchable: Yes
• ElectropaK Dimensions
  Length: 948 mm
  Width: 498 mm
  Height: 841 mm
  Dry Weight: 242 kg
  *Final dimensions dependent on selected options
• Disclaimer / Notes
  ESE (1800 rpm) only - Emergency Stationary Equipment. Final dimensions and specifications may vary depending on selected options and configuration.
• Definitions
  Prime Power: Power available at variable load in lieu of a main power network. Overload of 10% permitted for one hour in every 12 hours.
  Standby Power: Power available at variable load in the event of main power network failure. No overload permitted.
