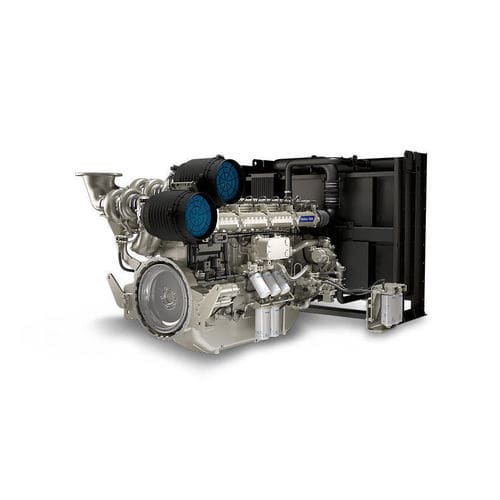

Diesel engine 5008C-E30TAG

8-cylinderturbochargedin-line

Overview
The Perkins® 5008C-E30TAG is engineered to deliver reliable emergency standby and critical-power performance for applications such as data centres and hospitals. Part of the Perkins 5000 Series, this engine is purpose-built for power generation, offering dependable operation, reduced emissions and straightforward integration into genset systems.

Key specs (from product hero)

• Gross Mechanical Output: 907-1107 kWm
• Typical Electrical Output: 1012-1250 kVA (810-1000 kWe)
• Emissions: US EPA Stationary Emergency-Use-Only (Tier 2)

Benefits

• 100% block load capability for immediate emergency response
• Extended service intervals: up to 750 hours / 2 years
• High specific power: up to 1107 kW from a 30.561 L displacement (36.9 kW/L)

Features at a glance

• Maximised productivity — excellent load acceptance; meets NFPA110 Type 10 and ISO 8528-5 G2/G3 performance classes. Designed and tested for dependable operation in harsh environments.
• Advanced technology — full-authority electronic control for precise management; easy telematics integration; certified to U.S. EPA Tier 2. Optional closed crankcase ventilation available.
• Serviceability and integration — single-point electronics connection; service access from one side; two-year oil and fuel service intervals.
• Low operating costs — efficient oil and fuel consumption to reduce daily running costs.

Standard equipment (summary)

• Air inlet system: engine-mounted air filter
• Cooling system: radiator supplied loose; fan and fan guards supplied
• Electrical equipment: engine-mounted ECM; wiring harness to ECM and connectors to single customer interface; starter motor and battery charging alternator
• Flywheel and flywheel housing: options available
• Fuel system: engine-mounted fuel filter; electric fuel priming pump; fuel cooler supplied
• General: configurable temperature and oil pressure settings for automatic stop/alarm

Technical specifications

• Gross Mechanical Output: 907-1107 kWm
• Typical Electrical Output: 1012-1250 kVA (810-1000 kWe)
• Rated Speed: 1800 rpm
• Emissions: US EPA Stationary Emergency-Use-Only (Tier 2)
• 60 Hz Typical Electrical Output: Prime 810-900 kWe; Standby 900-1000 kWe
• Number of cylinders: 8 vertical in-line
• Bore: 160 mm
• Stroke: 190 mm
• Displacement: 30.561 L
• Compression Ratio: 12.8:1
• Aspiration: Turbocharged and air-to-air chargecooled
• Combustion System: Direct injection
• Rotation (from flywheel end): Anti-clockwise, viewed from flywheel end
• Cooling System: Watercooled
• Aftertreatment: -
• Typical Alternator Efficiency: 95%
• Switchable: No
• ElectropaK Dimensions: Length 3469 mm; Width 2194 mm; Height 1919 mm; Dry Weight 4360 kg
• Disclaimer: *Final dimensions dependent on selected options
