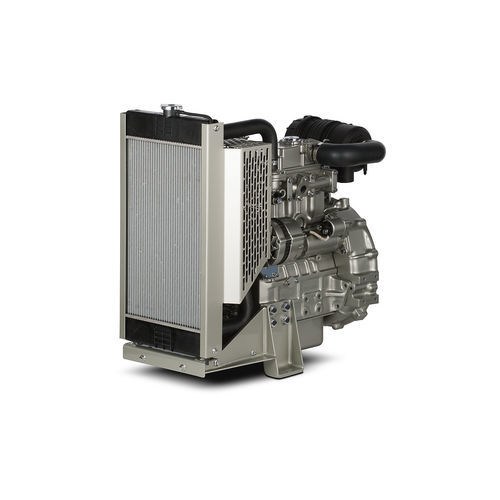

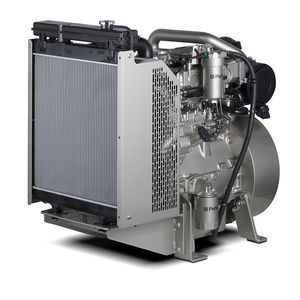

Diesel engine 403A-15G

3-cylinderin-linefor generator sets

Overview
The Perkins 403A-15G is a 3-cylinder electric power (EP) engine designed for compact generator applications where low noise, high power density and fuel efficiency are required. It is suitable for both unregulated environments with harsh conditions and markets with stricter emissions requirements.

Key Specs

• Gross Mechanical Output: 12.2–15.1 kWm
• Typical Electrical Output: 13.1–16.2 kVA (10.4–12.9 kWe)
• Rated Speed: 1500 rpm
• Emissions: Fuel optimised

Features At A Glance

• Compact and quiet — High power density in a small footprint; engineered for reduced noise levels suitable for urban and noise-sensitive installations.
• Efficient operation — Indirect injection and optimized combustion deliver competitive fuel economy across typical generator duty cycles.
• Low operating complexity — Mechanically governed fuel system and proven components simplify maintenance and reduce running costs.

Standard Equipment (summary)
Air inlet system

• Mounted air filter

Control system

• 12 V Electronic Shut Off Solenoid (ESOS) energised to run
• 12 V starter motor and 12 V 15 A alternator with DC output
• Glow plug cold start aid and heater/starter switch
• Oil pressure and coolant temperature switches

Cooling system

• Thermostatically-controlled system with belt-driven coolant pump and pusher fan
• Mounted radiator, piping and guards

Flywheel and flywheel housing

• Flywheel housing SAE 4 long
• High inertia flywheel to SAE J620 Size 190.5 mm (7½ in) heavy

Fuel system

• Mechanically governed cassette type fuel injection pump
• Split element fuel filter

General

• Front and rear engine mounting brackets

Oil system

• Spin-on full flow lubrication oil filter
• Wet steel sump with filler and dipstick

Product Specifications (table format)
Gross Mechanical Output: 12.2–15.1 kWm
Typical Electrical Output: 13.1–16.2 kVA (10.4–12.9 kWe)
Rated Speed: 1500 rpm
Emissions: Fuel optimised

50 Hz Typical Electrical Output
Prime: 13.1–14.7 kVA
Standby: 14.5–16.2 kVA

ElectropaK Dimensions (overview)
Length: 820 mm
Width: 469 mm
Height: 793 mm
Dry Weight: 197 kg

Disclaimer (excerpt)
*Final dimensions dependent on selected options

Technical specifications

• Number of Cylinders: 3 inline
• Bore: 84 mm
• Stroke: 90 mm
• Displacement: 1.5 L
• Compression Ratio: 22.5:1
• Aspiration: Naturally aspirated
• Combustion System: Indirect injection
• Rotation from Flywheel End: Anti-clockwise
• Cooling System: Liquid
• Aftertreatment: -
• Typical Alternator Efficiency: 87%
• Switchable: Available for some power nodes
• 50 Hz Prime and Standby outputs: Prime 13.1–14.7 kVA; Standby 14.5–16.2 kVA
