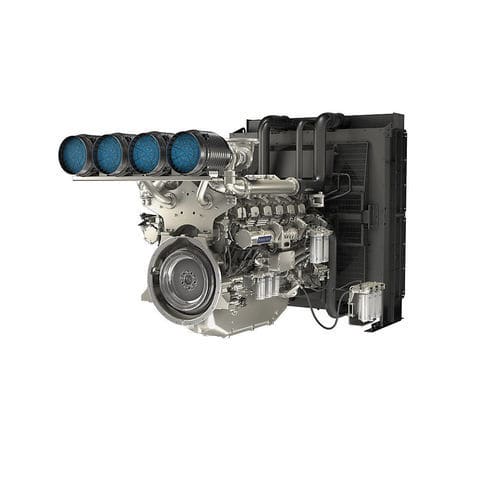

Diesel engine 5012AC-E46TAG

12-cylinderturbochargeddirect injection

Overview
The Perkins® 5012AC-E46TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres. Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.

Key Specs

• Gross Mechanical Output: 921-1638 kW
• Typical Electrical Output: 1020-1875 kVA (816-1500 kWe)
• Emissions: Equivalent to U.S. EPA Tier 2
• Rated Speed: 1500 rpm

Features At A Glance

• Maximised productivity: The 5000 Series delivers maximised productivity through outstanding load acceptance, achieving NFPA110 Type 10 and ISO 8528-5 G2 and G3 performance class and deliver high altitude capability. The engine build and performance have been designed from the ground up with ultimate productivity and dependability in mind, so power is available when required. Tested around the world in harsh environments to deliver performance under varying conditions.
• Minimised daily operating costs: Excellent oil consumption through dedicated piston, ring and liner assembly and low fuel consumption deliver minimised daily operating costs.
• Ease of integration and service accessibility: Core engine component design delivers rapid power delivery for demanding applications. A single point customer electronics connection supports ease of integration. Service accessibility is provided from a single side with 500 hours or two year oil and fuel service interval, whichever comes first.
• Advanced technology: The 5000 Series utilises advanced full-authority electronics that easily integrate into customer telematics solutions and meet emission equivalence to U.S. EPA Tier 2 standards.

Standard Equipment (summary)

• Electro unit or ElectropaK: Both
• Radiator fitted: Loose
• Fuel filter: Engine mounted
• Water separator: N/A
• Fuel priming pump (manual/electric): Electric
• Fuel cooler: Not required for most installations
• Air filter: Engine mounted
• Engine ECM: Engine mounted
• Wiring harness: To ECM; all connectors to single customer interface
• Temperature and oil pressure for automatic stop/alarm: Configurable

Characteristics / Technical Specifications

• Total Power Range:
  Gross Mechanical Output: 921-1638 kW
  Typical Electrical Output: 1020-1875 kVA (816-1500 kWe)
  Rated Speed: 1500 rpm
• Emission Standards:
  Emissions: Equivalent to U.S. EPA Tier 2
• 50 Hz Typical Electrical Output:
  Prime: 1275-1710 kVA (1020-1368 kWe)
  Standby: 1400-1875 kVA (1120-1500 kWe)
  Baseload: 1020-1368 kVA (816-1094 kWe)
• General:
  Number of Cylinders: 12 Vee
  Bore: 160 mm
  Stroke: 190 mm
  Displacement: 45.84 l
  Compression Ratio: 13.8:1
  Aspiration: Turbocharged and air-to-air chargecooled
  Combustion System: Direct injection
  Rotation from Flywheel End: Anti-clockwise
  Cooling System: Watercooled
  Aftertreatment: N/A
  Typical Alternator Efficiency: 95%
  Switchable: No
• ElectropaK Dimensions:
  Length: 3913 mm
  Width: 2200 mm
  Height: 2614 mm
  Dry Weight: 5860 kg
• Disclaimer / Notes:
  * Final dimensions dependent on selected options
• Definitions:
  Prime Power: Unlimited hours usage with an average load factor of 80% of published prime power over each 24 hour period. A 10% overload is available for one hour in every 12 hours operation.
  Standby Power: Limited to 500 hours usage with an average load factor of 80% of published standby power rating over each 24 hour period. Up to 300 hours annual continuous usage; no overload permitted.
  Baseload: Unlimited hours usage with an average load factor of 100% of published continuous operating power. No overload permitted on continuous operating power.
