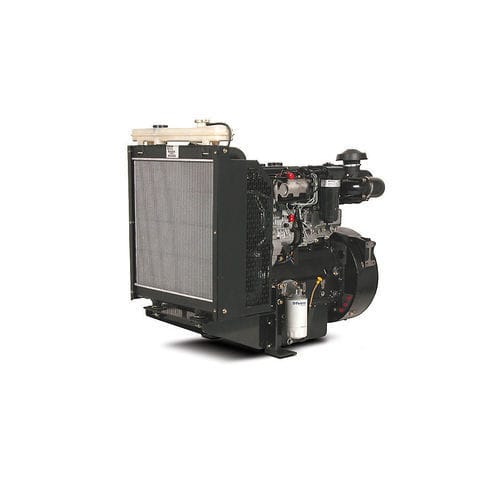

Diesel engine 1104C-44TG

4-cylinderturbochargedin-line

Overview
Our 1104 ElectropaK engines set the industry standard for prime and standby power generation. The 4-cylinder, 4.4 litre engines operate smoothly and quietly and can be electronically controlled to optimise fuel combustion according to applied load. They deliver reliable prime and standby outputs for generator applications.

Key specifications (summary)
Gross Mechanical Output: 56-62 kWm
Typical Electrical Output: 60-67 kVA (48-53 kWe)
Emissions: EU Stage II / U.S. EPA Tier 2
Rated Speed: 1500 / 1800 rpm
50 Hz Typical Electrical Output (Prime / Standby): 60.4 kVA / 66.7 kVA
60 Hz Typical Electrical Output (Prime / Standby): 54.3 kWe / 60 kWe

Features At A Glance

• Reliable operation — low fuel and oil consumption; 500-hour service intervals.
• Simple installation — common front and rear ends, connection points and components across the 1100 Series simplify installation and replacement.

Standard Equipment
Air inlet system

• Mounted air filter

Control system

• 12 volt shutdown solenoid energised to run
• 12 volt starter motor and 12 volt 65 amp alternator with DC output

Cooling system

• Mounted radiator and piping
• Thermostatically controlled system with gear driven circulation pump and belt driven pusher fan

Flywheels and flywheel housing

• Flywheel to SAE J620 size 10/11½
• SAE No. 3 flywheel housing

Fuel system

• Ecoplus fuel filter
• Rotary type pump

General

• Glow plug cold start aid

Oil system

• Cast iron sump with filler and dipstick
• Spin-on oil filter

ElectropaK dimensions
Length: 48.8 in / 1239 mm
Width: 24.2 in / 615 mm
Height: 37.4 in / 951 mm

Engine dimensions (typical)
Dry Weight: 884 lb / 401 kg

Notes / Definitions

• Prime Power — power available at variable load in lieu of a main power network. Overload of 10% permitted for one hour in every 12 hours of operation.
• Standby Power — power available at variable load in the event of a main power network failure. No overload is permitted.
• *Final dimensions dependent on selected options.

Technical specifications

• Model family: 1104 ElectropaK (4-cylinder, 4.4 l)
• Number of cylinders: 4 inline
• Bore: 105 mm (4.13 in)
• Stroke: 127 mm (5 in)
• Displacement: 4.4 l (269 in³)
• Compression ratio: 18.2:1
• Aspiration: Turbocharged
• Combustion system: Direct injection
• Rotation from flywheel end: Anti-clockwise
• Cooling system: Liquid
• Aftertreatment: - (none specified)
• Typical alternator efficiency: 90%
• Switchable: Yes
• Emissions certification: EU Stage II / U.S. EPA Tier 2
• Typical electrical outputs (selection): 50 Hz prime 60.4 kVA, 50 Hz standby 66.7 kVA; 60 Hz prime 54.3 kWe, 60 Hz standby 60 kWe
• Gross mechanical output range: 56-62 kWm
• Typical electrical output range (general): 60-67 kVA (48-53 kWe)
