Diesel generator set 5016C-E61TRG
three-phasestationary60 Hz

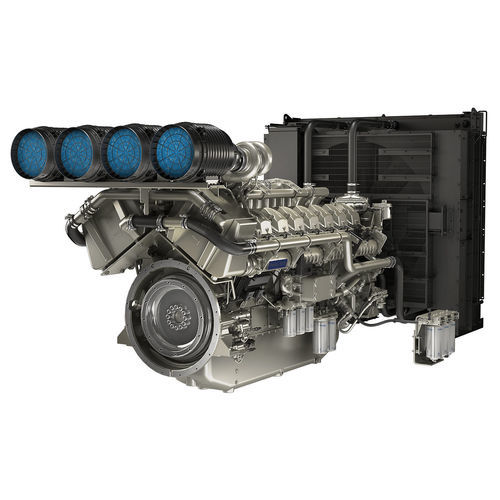

Diesel generator set - 5016C-E61TRG - Perkins Engines Inc - three-phase / stationary / 60 Hz

Add to favorites

Compare this product

Characteristics

Motor type

diesel

Phase

three-phase

Portability

stationary

Frequency

60 Hz

Fuel System

direct fuel injection

Cooling system

water-cooled, liquid-cooled

Applications

emergency, for hospitals

Emissions level

Tier 2

Power in kVA

Max.: 2,500 kVA
(3,399.05 hp)

Min.: 1,969 kVA
(2,677.09 hp)

Rated capacity

Max.: 2,000 kW
(2,719.2 hp)

Min.: 1,575 kW
(2,141.4 hp)

Rotational speed

1,800 rpm
(11,310 rad.min-1)

Length

4,687 mm
(185 in)

Width

2,184 mm
(86 in)

Height

3,735 mm
(147.05 in)

Weight

Max.: 9,075 kg
(20,006.95 lb)

Min.: 8,359 kg
(18,428.44 lb)

Description

Overview
Perkins® 5016C-E61TRG delivers reliable power for emergency standby and critical applications, including data centres and hospitals.

Key Specs

Gross Mechanical Output: 1774-2216 kW
Typical Electrical Output: 1969-2500 kVA (1575-2000 kWe)
Emissions: U.S. EPA Stationary Emergency Engine equivalent to Tier 2
Rated Speed: 1800 rpm

Features At A Glance

Maximised productivity: 5000 Series delivers outstanding load acceptance; meets NFPA110 Type 10 and ISO 8528-5 G2/G3 performance classes and high-altitude capability.
Ease of integration and service accessibility: single-point customer electronics connection; service access from one side; two-year oil and fuel service intervals.
Low daily operating costs: optimized oil consumption via dedicated piston, ring and liner assembly and low fuel consumption.
Advanced technology: full-authority electronic control compatible with telematics; optional closed crankcase ventilation.

Standard Equipment (highlights)

Electro Unit or ElectropaK: Both
Radiator fitted: Yes
Fuel filter, engine mounted: Yes
Water separator: Optional
Fuel water sight glass: Yes
Fuel priming pump: Electric
WIF sensor: Yes
Fuel cooler: None
Air filter, engine mounted: Yes
Engine ECM, engine mounted: Yes
Wiring harness to ECM and single customer interface: Yes
Starter motor: Yes
Battery charging alternator: Yes
Flywheel housing and flywheel: Yes
Fan / Fan guard: None
Temperature and oil pressure for automatic stop/alarm configurable: Yes

Product Specifications (selected)

Gross Mechanical Output: 1774-2216 kW
Typical Electrical Output: 1969-2500 kVA (1575-2000 kWe)
Rated Speed: 1800 rpm
Emissions: U.S. EPA Stationary Emergency Engine equivalent to Tier 2

ElectropaK Dimensions (selected)

Length: 4687 mm
Width: 2184 mm
Height: 3735 mm
Dry Weight: 8359 kg
Wet Weight: 9075 kg

Definitions / Notes (selection)

Generator powers are typical and based on typical alternator efficiencies and a power factor (cos θ) of 0.8.
Final dimensions dependent on selected options.
Emergency standby power (ESP): limited to 200 hours usage per year with an average load factor of 80% of the published ESP rating over each 24-hour period.
Data centre power (DCP): power available for variable or continuous electrical loads in a data centre application; see ISO8528-1 and local Perkins applications representative for details.
