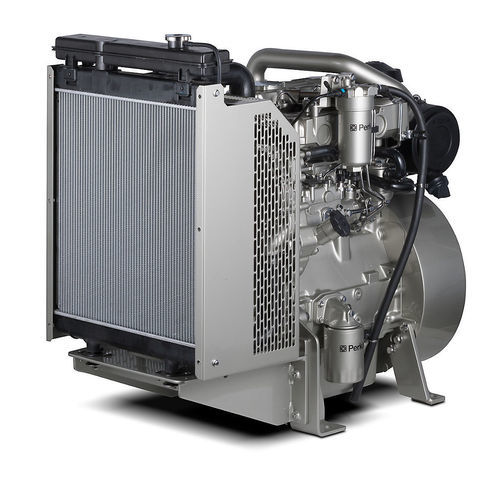

Diesel engine 1103A-33G3-cylinderdirect fuel injectionturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 3-cylinder
- Technology
- turbocharged, direct fuel injection, direct injection, in-line
- Product applications
- power generation
- Cooling system
- water cooling
- Emissions level
- Stage III, Tier 3
- Other characteristics
- liquid-cooled
- Power
Min.: 28 kW
(38.07 hp)Max.: 36.5 kW
(49.63 hp)- Rotational speed
Min.: 1,500 rpm
(9,424.778 rad.min-1)Max.: 1,800 rpm
(11,309.7336 rad.min-1)- Displacement
3,300 cm³
(111.586 US fl oz)- Weight
412 kg
(908.3 lb)- Length
1,000 mm
(39.4 in)- Width
629 mm
(24.8 in)- Height
951 mm
(37.4 in)
Description
Overview
The 1103A-33G is a compact 3-cylinder, 3.3 litre power generation engine designed for prime and standby applications. It delivers efficient fuel performance for continuous duty and high load acceptance for backup installations, while meeting fuel-optimised emission targets equivalent to EU Stage IIIA / U.S. EPA Tier 3.
Applications
Features At A Glance
Key Specifications
Standard Equipment
Technical Specifications
The 1103A-33G is a compact 3-cylinder, 3.3 litre power generation engine designed for prime and standby applications. It delivers efficient fuel performance for continuous duty and high load acceptance for backup installations, while meeting fuel-optimised emission targets equivalent to EU Stage IIIA / U.S. EPA Tier 3.
Applications
- Prime power for small to medium generator sets
- Standby and emergency backup installations
- Industrial sites requiring compact engine packages
Features At A Glance
- Maintenance-friendly: Mechanical fuel injection and 500-hour service intervals reduce maintenance complexity.
- Flexible installation: Compatibility with the 1100 Series simplifies upgrades and replacements.
- Quality filtration: High-performance oil and fuel filters enhance durability and reliability.
- Variants: Naturally aspirated and turbocharged options to match power requirements.
Key Specifications
- Gross Mechanical Output: 28 - 36.5 kWm
- Typical Electrical Output: 30-38 kVA (24-31 kWe)
- Rated Speed: 1500/1800 rpm
- Emissions: Fuel Optimised (EU Stage IIIA / EPA Tier 3 equivalent)
Standard Equipment
- Air inlet system: Mounted air filter
- Control system: 12 V starter motor; 12 V 65 A alternator with DC output; 12 V shutdown solenoid energised to run
- Cooling system: Mounted radiator and piping; thermostatic control; gear-driven circulation pump; belt-driven pusher fan
- Flywheels & housing: High inertia flywheel to SAE J620 size 10/11½; SAE 3 housing
- Fuel system: Next-generation fuel filter; rotary-type pump
- General: Front engine mounting brackets
- Oil system: Wet sump with filler and dipstick; spin-on oil filter
Technical Specifications
- Number of Cylinders: 3 vertical inline
- Bore: 105 mm (4.13 in)
- Stroke: 127 mm (5 in)
- Displacement: 3.3 L (201 in³)
- Compression Ratio: 19.25:1
- Aspiration: Naturally aspirated (turbocharged option available)
- Combustion System: Direct injection
- Rotation from Flywheel End: Anti-clockwise
- Cooling System: Liquid
- Typical Alternator Efficiency: 87%
- Switchable: Yes
- ElectropaK Dimensions (L×W×H): 1000 × 629 × 951 mm
- Engine Dry Weight: 412 kg
- Additional notes: Final dimensions dependent on selected options
