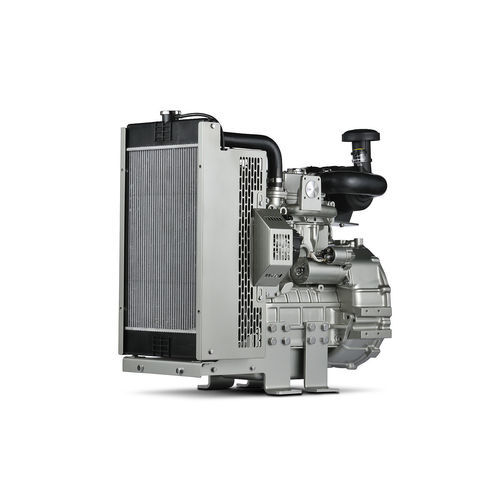

Diesel engine 403F-15G

3-cylinderin-linefor generator sets

Overview
The Perkins® 403F-15G is part of the Perkins 400 Series designed for compact generator set applications. It is a 3-cylinder, mechanically injected diesel engine optimised for prime power, meeting stringent emissions requirements for EU and USA markets, including U.S. EPA Tier 4 Final.

Key Specs
Gross Mechanical Output: 12.6-14 kWm
Typical Electrical Output: 13.5-15.1 kVA (10.8-12.1 kWe)
Emissions: U.S. EPA Tier 4 Final
Rated Speed: 1800 rpm

Features At A Glance

• Designed to meet key power nodes for generator sets with reliable cold and warm starting and predictable transient response.
• Compact mechanical architecture for straightforward installation and service access, including spin-on filters and cassette-type fuel injection pump.
• Optimised fuel and oil consumption to reduce operating costs over the product life.
• Standard 500-hour service intervals for oil and fuel under typical conditions to minimise maintenance frequency.
• Standard 12 month warranty for prime power and emissions warranty (1500 hours or two years); optional extended coverage via Perkins Platinum Protection.
• Manufactured to consistent global quality standards.

Standard Equipment (selected)

• Electro unit
• Fuel filter, engine mounted
• Fuel priming pump (manual)
• Air filter, engine mounted
• Starter motor
• Battery charging alternator
• Flywheel housing and flywheel
• Fan and fan guard
• Temperature and oil pressure configurable for automatic stop/alarm

ElectropaK Dimensions
Length: 805 mm
Width: 473 mm
Height: 793 mm
Dry Weight: 197 kg

Technical specifications

• Number of cylinders: 3 inline
• Bore: 84 mm
• Stroke: 90 mm
• Displacement: 1.5 l
• Compression ratio: 22.5:1
• Aspiration: Naturally aspirated
• Combustion system: Mechanical indirect injection
• Rotation from flywheel end: Anti-clockwise
• Cooling system: Watercooled
• Aftertreatment: -
• Typical alternator efficiency: 88%
• Switchable: No
• 60 Hz Typical Electrical Output — Prime: 10.8 kWe; Standby: 12.1 kWe
• Emissions standard: U.S. EPA Tier 4 Final
