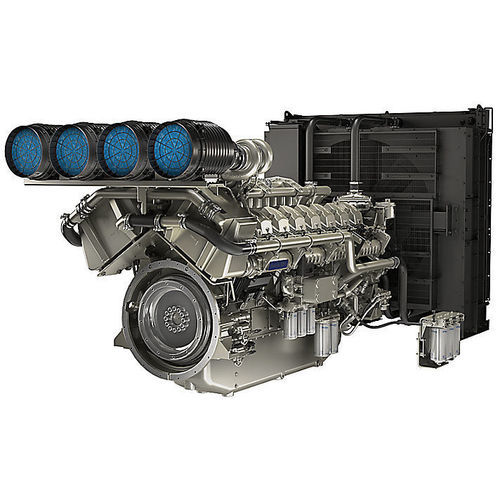

Diesel generator set 5016AC-E61TRG

three-phasestationary50 Hz

Overview
The Perkins 5016AC-E61TRG is a noncertified engine configuration (equivalent to EU Stage II, China NR III and U.S. EPA Tier 2) developed for power generation applications including prime, standby, critical and data centre power. Part of the Perkins 5000 Series, this ElectropaK (electro unit) offers high mechanical output and electrical capability for demanding industrial installations.

Key Specs

• Gross Mechanical Output: 1249-2216 kW
• Typical Electrical Output: 1400-2500 kVA (1120-2000 kWe)
• Rated Speed: 1500 rpm
• Cylinders / Displacement: 16 / 61.1 L

Features At A Glance

• Designed for reliable operation in standby and prime roles; meets NFPA110 and ISO guidance for power generation applications.
• Robust power response from core engine design for rapid load acceptance across varied operating conditions.
• Optimised maintenance intervals with low oil and fuel consumption and extended service intervals.
• Integrated full-authority electronic controls for easy integration with customer telematics and system controls.

Product Specifications
Total Power Range
Gross Mechanical Output: 1249-2216 kW
Typical Electrical Output: 1400-2500 kVA (1120-2000 kWe)
Rated Speed: 1500 rpm

Emission Standards
Noncertified configuration equivalent to EU Stage II, China Nonroad Stage III and U.S. EPA Tier 2

50 Hz Typical Electrical Output
Prime: 1750-2250 kVA (1400-1800 kWe)
Standby: 1925-2500 kVA (1540-2000 kWe)

General

• Number of Cylinders: 16
• Displacement: 61.1 L
• Aspiration: Turbocharged and air-to-water chargecooled
• Combustion System: Direct injection
• Compression Ratio: 13.8:1
• Aftertreatment: None (noncertified configuration)
• Total Lubricating Oil Capacity: 213 L
• Total Coolant Capacity: 95 L

Electro Unit Dimensions

• Width: 3675 mm (dry width option: 2076 mm)
• Height: 1260 mm
• Dry Weight: ~6127 kg
• Wet Weight: ~6416 kg

Disclaimer
*Final dimensions and weights depend on selected options and alternator configuration

Definitions (selection)
Prime Power: Unlimited hours at an average load factor of 80%; 10% overload for 1 hour in every 12 hours.
Standby Power: Limited annual use; no overload permitted for standby rating.
Continuous Operating Power (COP): Unlimited hours at 100% load factor; no overload permitted.
Data centre power (DCP): Ratings for variable or continuous data centre loads; up to 100% load factor with specified overload allowances.

Technical specifications

• Model: 5016AC-E61TRG
• Manufacturer: Perkins
• Engine series: 5000 Series
• Configuration: ElectropaK / Electro unit
• Typical alternator efficiency: 95%
