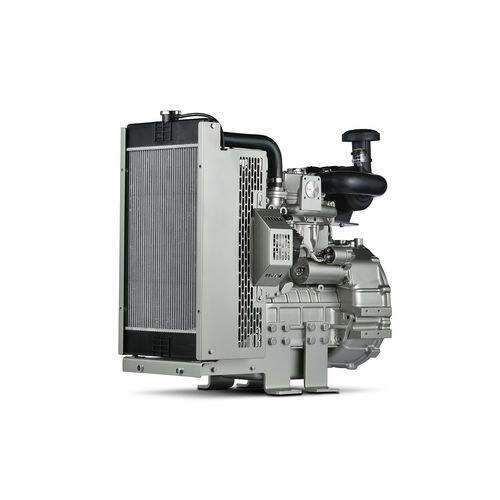

Diesel engine 403D-07G

3-cylinderin-linepower generation

Overview
The Perkins 403D-07G is a 3-cylinder diesel engine designed for compact power generation installations. It combines high power density and fuel efficiency with low noise and refinement, making it suitable for both unregulated (extreme) and higher-regulation territories where emissions standards apply.

Features At A Glance

• Compact and flexible - Small ElectropaK footprint for space-constrained installations; some variants allow speed/frequency switching to match application and territory requirements.
• Efficient, quiet and powerful - 3-cylinder configuration delivers strong power density, good fuel economy and reduced noise levels for urban or noise-sensitive environments.
• Lower operating costs - Simple indirect-injection fuel system, proven reliability, ease of installation and Perkins support reduce total cost of ownership. Common engine platform facilitates affordable upgrades and maintenance.

Key Specs
Gross Mechanical Output: 5.5-7.4 kWm
Typical Electrical Output: 5.6-7.7 kVA (4.5-6.1 kWe)
Emissions: EU Stage IIIA / U.S. EPA Tier 3

Product Specifications
Total Power Range
Gross Mechanical Output: 5.5-7.4 kWm
Typical Electrical Output: 5.6-7.7 kVA (4.5-6.1 kWe)
Rated Speed: 1500 / 1800 / 3000 rpm

Emission Standards
Emissions: EU Stage IIIA / U.S. EPA Tier 3

50 Hz Typical Electrical Output
Prime: 5.6 kVA
Standby: 6.1 kVA

60 Hz Typical Electrical Output
Prime: 5.6 kWe
Standby: 6.1 kWe

General
Number of Cylinders: 3 inline
Bore: 67 mm
Stroke: 72 mm
Displacement: 0.76 l
Compression Ratio: 23.5:1
Aspiration: Naturally aspirated
Combustion System: Indirect injection
Rotation from Flywheel End: Anti-clockwise
Cooling System: Liquid
Aftertreatment: -
Typical Alternator Efficiency: 83.2-84.3%
Switchable (speeds/frequencies): No

ElectropaK Dimensions
Length: 645 mm
Width: 442 mm
Height: 630 mm
Dry Weight: 87 kg

Disclaimer
*Final dimensions dependent on selected options. ESE (1800 rpm - Certified model) only - Emergency Stationary Equipment.

Definitions
Prime Power: Power available at variable load in lieu of a main power network. Overload of 10% permitted for 1 hour in every 12 hours of operation.
Standby Power: Power available at variable load in the event of a main power network failure. No overload permitted.

Technical specifications

• Model: 403D-07G
• Brand: Perkins
• Gross mechanical output: 5.5-7.4 kWm
• Typical electrical output: 5.6-7.7 kVA (4.5-6.1 kWe)
• Rated speeds supported: 1500 / 1800 / 3000 rpm
• Emissions compliance: EU Stage IIIA / U.S. EPA Tier 3
• Number of cylinders: 3 inline
• Bore x Stroke: 67 mm x 72 mm
• Displacement: 0.76 l
• Compression ratio: 23.5:1
• Aspiration: Naturally aspirated
• Combustion: Indirect injection
• Rotation (flywheel end): Anti-clockwise
• Cooling: Liquid
• Typical alternator efficiency: 83.2-84.3%
• Switchable speeds/frequencies: No
• ElectropaK dimensions (L x W x H): 645 mm x 442 mm x 630 mm
• Dry weight (ElectropaK): 87 kg
