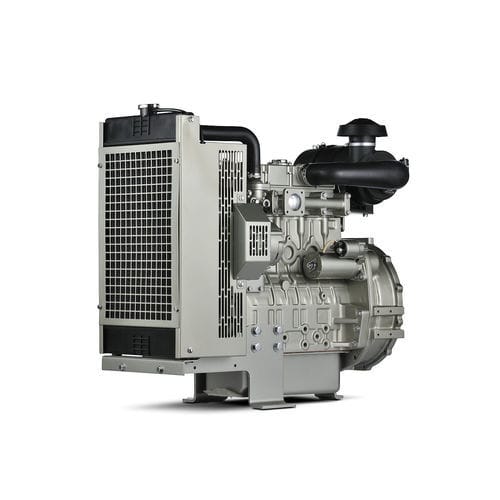

Diesel engine 404J-22G

4-cylinderwater coolingStage V

Overview The Perkins 400 Series compact engine family is engineered for generator set applications. The 404J-22G is designed to meet EU Stage V emissions while delivering consistent mechanical performance and ease of integration for mobile and stationary gensets.

Key Specs (summary)

• Gross Mechanical Output: 18.6-20.6 kWm
• Typical Electrical Output: 20.1-22.3 kVA (16.1-17.8 kWe)
• Rated Speed: 1500 rpm
• Emissions: EU Stage V

Features At A Glance

• Reliable cold and hot starting with stable steady-state and rapid transient response, optimised for generator set duty cycles.
• Compact footprint and straightforward maintenance: spin-on filters and cassette-type fuel injection pump options simplify service and integration.
• Efficient fuel and low oil consumption from a mechanically governed design to reduce total cost of ownership.
• Standard 500-hour oil and fuel service intervals to minimise downtime and service costs.
• Standard 12-month warranty for prime power and a 1500 hour / two-year emissions warranty; optional extended coverage via Perkins Platinum Protection.
• Manufactured to consistent global quality standards to ensure reliability across installations.

Standard Equipment (ElectropaK)

• ElectropaK
• Radiator fitted
• Fuel filter, engine mounted
• Water separator
• Fuel priming pump (manual/electric)
• Air filter, engine mounted
• Starter motor
• Battery charging alternator
• Flywheel housing
• Flywheel
• Fan
• Fan guard
• Temperature and oil pressure for automatic stop/alarm configurable

Product Specifications (table style) Total Power Range:
Gross Mechanical Output: 18.6-20.6 kWm
Typical Electrical Output: 20.1-22.3 kVA (16.1-17.8 kWe)
Rated Speed: 1500 rpm

Emission Standards:
Emissions: EU Stage V

50 Hz Typical Electrical Output:
Prime: 20.1 kVA
Standby: 22.3 kVA

General:
Number of Cylinders: 4
Bore: 84 mm (3.3 in)
Stroke: 100 mm (3.9 in)
Displacement: 2.2 l (135 in³)
Compression Ratio: 23.3:1
Aspiration: Naturally aspirated
Combustion System: Mechanical indirect injection
Rotation from Flywheel End: Anti-clockwise
Cooling System: Watercooled
Typical Alternator Efficiency: 87%
Switchable: No

ElectropaK Dimensions:
Length: 973 mm (38.3 in)
Width: 590 mm (23.2 in)
Height: 840 mm (33.1 in)
Dry Weight: 242 kg (534 lb)

Technical specifications

• Model: 404J-22G
• Engine family: Perkins 400 Series
• Gross mechanical output: 18.6-20.6 kWm
• Typical electrical output (50 Hz): 20.1-22.3 kVA (16.1-17.8 kWe)
• Rated speed: 1500 rpm
• Emissions compliance: EU Stage V
• Cylinders: 4
• Bore x Stroke: 84 mm x 100 mm
• Displacement: 2.2 L
• Compression ratio: 23.3:1
• Aspiration: Naturally aspirated
• Injection/combustion: Mechanical indirect injection (cassette-type pump option referenced)
• Rotation (from flywheel end): Anti-clockwise
• Cooling: Watercooled
• Typical alternator efficiency: 87%
• ElectropaK dimensions (L x W x H): 973 x 590 x 840 mm
• Dry weight (ElectropaK): 242 kg
• Service intervals: 500 hour oil and fuel intervals (standard)
• Warranty: 12 month standard for prime power; 1500 hour / two year emissions warranty (options for extended service contracts)
