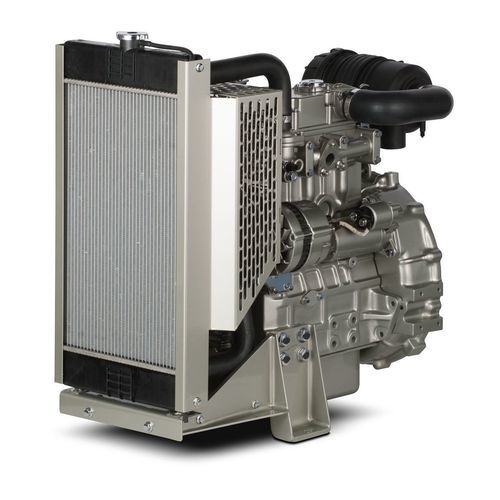

Diesel engine 403A-11G

3-cylinderin-linepower generation

Overview
The 403A-11G EP diesel engine is a compact 3-cylinder power unit designed for industrial power generation applications. It delivers high power density, efficient fuel consumption and low noise for installations where space, emissions tuning and reliable electrical output are priorities.

Features At A Glance

• Compact and flexible – ElectropaK packaging minimises footprint; suitable where size constraints and aftertreatment integration are considerations. Certain configurations support matching of engine speed and electrical frequency to application requirements.
• Efficient, quiet and powerful – Three-cylinder layout provides strong power-to-weight ratio, improved refinement and low operational noise, appropriate for urban and sensitive environments.
• Lower operating costs – Simple indirect injection fuel system, proven mechanical governance and straightforward installation reduce maintenance burden and total cost of ownership.

Key specifications

• Gross Mechanical Output: 8.6–9.5 kWm
• Typical Electrical Output: 9–10 kVA (7.2–8 kWe)
• Emissions: Fuel Optimised

Product Specifications
Total Power Range
Gross Mechanical Output: 8.6–9.5 kWm
Typical Electrical Output: 9–10 kVA (7.2–8 kWe)
Rated Speed: 1500 rpm

Emission Standards
Emissions: Fuel Optimised

50 Hz Typical Electrical Output
Prime: 9 kVA
Standby: 10 kVA

General
Number of Cylinders: 3 inline
Bore: 77 mm
Stroke: 81 mm
Displacement: 1.1 l
Compression Ratio: 23.0:1
Aspiration: Naturally Aspirated
Combustion System: Indirect Injection
Rotation from Flywheel End: Anti-clockwise
Cooling System: Liquid
Aftertreatment: -
Typical Alternator Efficiency: 86%
Switchable: No

ElectropaK Dimensions
Length: 775 mm
Width: 438 mm
Height: 702 mm
Dry Weight: 129 kg

Standard Equipment

• Air inlet system: Mounted air filter
• Control system: 12 volt Electronic Shut Off Solenoid (ESOS) energised to run
• 12 volt starter motor and 12 volt 15 amp alternator with DC output
• Glow plug cold start aid and heater/starter switch
• Oil pressure and coolant temperature switches
• Cooling system: Thermostatically-controlled system with belt driven coolant pump and pusher fan
• Mounted radiator, piping and guards
• Flywheel and flywheel housing: Flywheel housing SAE 5 long; high inertia flywheel to SAE J620 Size 165.1 mm (6½ in) heavy
• Fuel system: Mechanically governed cassette type fuel injection pump; split element fuel filter
• General: Front and rear engine mounting brackets
• Oil system: Spin-on full flow lub oil filter; wet steel sump with filler and dipstick

Notes / Disclaimers
* Final dimensions dependent on selected options.

Caractéristiques / Spécifications techniques

• Model: 403A-11G
• Gross Mechanical Output: 8.6–9.5 kWm
• Typical Electrical Output (50 Hz): Prime 9 kVA; Standby 10 kVA (equivalent 7.2–8 kWe)
• Rated Speed: 1500 rpm
• Emissions: Fuel Optimised
• Number of Cylinders: 3 inline
• Bore x Stroke: 77 mm x 81 mm
• Displacement: 1.1 l
• Compression Ratio: 23.0:1
• Aspiration: Naturally Aspirated
• Combustion System: Indirect Injection
• Rotation (from flywheel end): Anti-clockwise
• Cooling: Liquid cooling
• Typical Alternator Efficiency: 86%
• Switchable speed/frequency: No
• ElectropaK dimensions (L×W×H): 775 mm × 438 mm × 702 mm
• Dry Weight (ElectropaK): 129 kg
