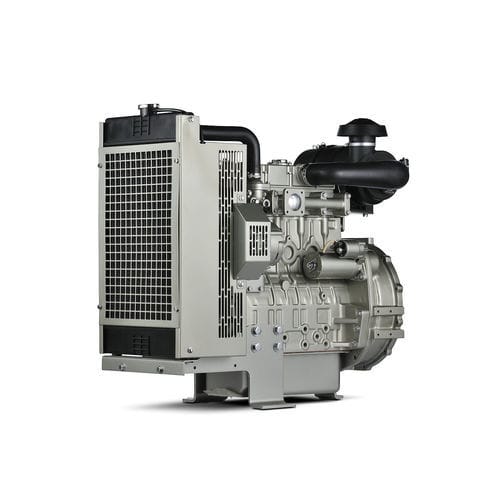

Diesel engine 404D-22TAG

4-cylinderturbochargedin-line

Overview
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4-cylinder 2.2 litre 404D-22TAG provides reduced noise, vibration and harshness (NVH) while delivering reliable performance for generator sets in unregulated, UN ECE R96 Stage IIIA constant speed and U.S. EPA Stationary Emergency Engine territories. Key user benefits include reliable cold-start capability, low operating costs, compact design and good fuel economy.

Key specs

• Gross mechanical output: 34.4-36.3 kWm
• Typical electrical output: 37-40 kVA (29-32 kWe)
• Emissions: UN ECE R96 Stage IIIA constant speed; U.S. EPA Stationary Emergency Engine

Features at a glance

• Low lifetime operating cost — Reliability, efficient fuel consumption, straightforward installation and proven components reduce total cost of ownership. Optional aftertreatment for further cost savings is available.
• Compact, quiet and suitable for noise-sensitive sites — Delivers 20-40 kVA range with 4-cylinder refinement and reduced noise, supporting urban and other noise-sensitive generator installations.

Product specifications
Total power range
Gross mechanical output: 34.4-36.3 kWm
Typical electrical output: 37-40 kVA (29-32 kWe)
Rated speed: 1800 rpm

Emission standards
Emissions: UN ECE R96 Stage IIIA constant speed; U.S. EPA Stationary Emergency Engine

60 Hz typical electrical output
Prime: 29.2 kWe
Standby: 32.1 kWe

General
Number of cylinders: 4 inline
Bore: 84 mm (3.3 in)
Stroke: 100 mm (3.9 in)
Displacement: 2.2 l (135.2 in³)
Compression ratio: 23.3:1
Aspiration: Turbocharged aftercooled
Combustion system: Indirect injection
Rotation from flywheel end: Anti-clockwise
Cooling system: Liquid
Aftertreatment: -
Typical alternator efficiency: 90%
Switchable: No

ElectropaK dimensions
Length: 1050 mm (41.3 in)
Width: 710 mm (28 in)
Height: 998 mm (39.3 in)
Dry weight: 306 kg (675 lb)

Disclaimer / notes
* Final dimensions dependent on selected options.
* ESE (1800 rpm) only - Emergency Stationary Equipment.

Standard equipment
Air inlet system

• Mounted air filter

Control system

• 12 volt starter motor and 12 volt 65 amp alternator with DC output
• Electronic shut off solenoid (ESOS) 12 volt energised to run

Cooling system

• Coolant temperature switch
• Mounted radiator, piping and guards
• Thermostatically controlled system with belt driven coolant pump and pusher fan

Flywheels and flywheel housing

• 1800 rev/min
• Flywheel housing SAE 4 long
• High inertia flywheel to SAE J620 size 7 1/2 heavy

Fuel system

• Electronically governed cassette type fuel injection pump
• Split element fuel filter

General

• Front and rear engine mounting bracket
• Glow plug cold start aid and heater/starter switch

Oil system

• Oil pressure switch
• Spin-on full flow lubricating oil filter
• Wet steel sump with filler and dipstick

Technical specifications

• Model: 404D-22TAG
• Brand: Perkins
• Engine family: 404 (4 cylinder, 2.2 litre)
• Gross mechanical output: 34.4-36.3 kWm
• Typical electrical output: 37-40 kVA (29-32 kWe)
• Rated speed: 1800 rpm
• Prime (60 Hz): 29.2 kWe
• Standby (60 Hz): 32.1 kWe
• Emissions certification: UN ECE R96 Stage IIIA constant speed; U.S. EPA Stationary Emergency Engine
• Number of cylinders: 4 inline
• Bore x stroke: 84 mm x 100 mm
• Displacement: 2.2 l
• Compression ratio: 23.3:1
• Aspiration: Turbocharged aftercooled
• Combustion system: Indirect injection
• Rotation: Anti-clockwise (from flywheel end)
• Cooling: Liquid
• Typical alternator efficiency: 90%
• ElectropaK dimensions (L×W×H): 1050 mm × 710 mm × 998 mm
• Dry weight (ElectropaK): 306 kg
