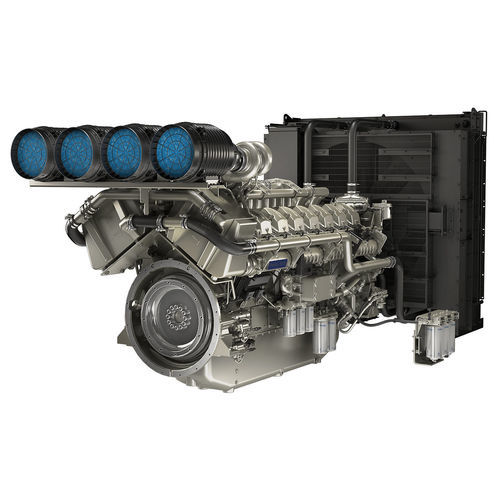

Diesel engine 5016A-E61TRG

16-cylinderturbochargeddirect injection

Overview
The Perkins® 5016A-E61TRG is a 16-cylinder diesel engine designed for power generation applications including standby, prime, critical and data centre use. Part of the Perkins® 5000 Series, it is engineered for continuous operation under varied environmental and altitude conditions and integrates full-authority electronic control for efficient integration with generator systems.

Features At A Glance

• Designed for power generation: Engine ratings support prime, standby, continuous and data centre applications in line with manufacturer definitions.
• High-altitude and extreme environment capability: Tested for consistent performance across a wide range of conditions.
• Efficient consumption: Low oil and optimized fuel consumption through dedicated piston, ring and liner assemblies.
• Advanced electronics: Full authority engine electronics enable telematics integration and fuel-efficiency optimisation.

Key Specs (Top)
Gross Mechanical Output: 1249-2216 kW
Typical Electrical Output: 1400-2500 kVA (1120-2000 kWe)
Emissions: Fuel Optimised
Rated Speed: 1500 rpm

Standard Equipment (select)

• Electro unit
• Radiator fitted: None
• Fuel filter, engine mounted: Yes
• Water separator: Yes
• Fuel water sight glass: None
• Fuel priming pump: Electric
• WIF sensor: Yes
• Fuel cooler: None
• Air filter, engine mounted: Yes
• Engine ECM, engine mounted: Yes
• Wiring harness to ECM: Yes
• Wiring harness (all connectors to single customer interface): Yes
• Starter motor: Yes
• Battery charging alternator: Yes
• Flywheel housing: Yes
• Flywheel: Yes
• Fan: None
• Fan guard: None
• Temperature and oil pressure for automatic stop/alarm: Yes

Technical specifications

• Number of cylinders: 16
• Displacement: 61.1 l (3728.6 in³)
• Aspiration: Turbocharged and air-to-water chargecooled
• Bore: 160 mm (6.3 in)
• Stroke: 190 mm (7.5 in)
• Combustion system: Direct injection
• Compression ratio: 13.8:1
• Aftertreatment: None
• Total lubricating oil capacity: 213 l (56.3 gal US)
• Total coolant capacity: 95 l (25.1 gal US)
• Rotation from flywheel end: Anti-clockwise
• Cooling system: Liquid
• Typical alternator efficiency: 95%
• Switchable: No
• 50 Hz Typical Electrical Output (Prime): 1750-2250 kVA (1400-1800 kWe)
• 50 Hz Typical Electrical Output (Standby): 1925-2500 kVA (1540-2000 kWe)
• Electro unit dimensions (typical): Width 3675 mm (144.7 in); Height 1260 mm (49.6 in)
• Electro unit weights (typical): Dry weight 6127 kg (13,510 lb); Wet weight 6416 kg (14,147 lb)
• Total Power Range (Gross Mechanical Output): 1249-2216 kW
• Definitions / Ratings: Prime, Standby, Continuous operating power (COP), Data centre power (DCP), Limited-time running power (LTP), Baseload — as per manufacturerʼs published definitions (ratings and permitted overloads vary by rating).
