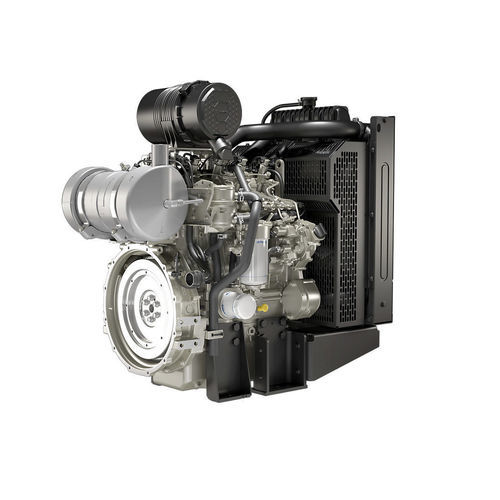

Diesel engine 404J-E22TAG

4-cylindercommon-railin-line

Overview
Building on the 400 Series, the Perkins 404J-E22TAG ElectropaK complies with EU Stage V and U.S. EPA Tier 4 Final. The ElectropaK is engineered for simplified integration into generator sets, reliable operation in regulated territories and consistent performance for prime and standby applications.

Key Specs
Gross Mechanical Output: 38.1 - 49.6 kW
Typical Electrical Output: 40–50 kVA (32–40 kWe)
Emissions: EU Stage V, U.S. EPA Tier 4 Final
Rated Speed: 1500 / 1800 rpm

Features At A Glance

• Compliance and performance: meets ISO 8528-5 Class G3 load acceptance; certified ElectropaK package for Stage V and Tier 4 Final mobile generator set applications.
• Integration and serviceability: engine-mounted aftertreatment with service-free DPF; factory-fitted wiring harness for simplified connection to genset loom; fuel filter with water-in-fuel sensor positioned for easy low-pressure fuel system installation.
• Operating economy: optimised fuel and oil consumption while meeting emissions limits, based on a proven core engine.
• Service intervals: standard 500-hour oil and fuel service intervals to minimise periodic maintenance costs.
• Support and warranty: supported by Perkins standard warranty with optional extended protection plans.

Standard Equipment (summary)

• Air system: turbocharged, engine-mounted air filter.
• Electrical & electronics: chassis-mounted ECU; SAE J1939 CAN support; waterproof wiring harness, connectors and sensors; 12 V 85 A alternator; 12 V starter; glow plug starting aid.
• Flywheel & housing: available flywheel and housing options.
• Fuel system: electronic high-pressure common rail (2000 bar); fuel filter with water separator; electric fuel priming pump.
• General: cast iron engine block; block heater provision; fan guard; configurable automatic stop/alarm based on temperature and oil pressure.

50 Hz Typical Electrical Output (table)
Prime: 40 kVA
Standby: 44 kVA

60 Hz Typical Electrical Output (table)
Prime: 36 kWe
Standby: 40 kWe

ElectropaK Dimensions (table)
Dry weight: 327 kg
Height: 985 mm
Length: 992 mm
Width: 602 mm

Aftertreatment & Cooling
Aftertreatment: DOC + DPF (engine-mounted)
Cooling system: liquid cooled

Technical specifications

• Model / Commercial name: 404J-E22TAG
• Manufacturer / Brand: Perkins
• Number of cylinders: 4 inline
• Cycle: 4 stroke
• Bore: 84 mm
• Stroke: 100 mm
• Displacement: 2.2 L
• Compression ratio: 17.0:1
• Aspiration: Turbocharged aftercooled
• Combustion system: Direct injection
• Rotation from flywheel end: Anti-clockwise
• Aftertreatment: DOC + DPF (service-free DPF in ElectropaK configuration)
• Gross mechanical output: 38.1 - 49.6 kW
• Typical electrical output: 40–50 kVA (32–40 kWe)
• 50 Hz prime/standby: 40 kVA / 44 kVA
• 60 Hz prime/standby: 36 kWe / 40 kWe
• Rated speeds: 1500 / 1800 rpm
• Dry weight (ElectropaK): 327 kg
• ElectropaK dimensions (H×L×W): 985 mm × 992 mm × 602 mm
• Fuel system details: electronic 2000 bar common rail, fuel filter, water separator, electric priming pump
• Electrical: 12 V alternator (85 A), 12 V starter, chassis-mounted ECU, SAE J1939 CAN support
• Service intervals: 500 hour oil and fuel service intervals (standard)
