Signal generator LSX8081D

microwaveRFsingle-channel

Overview

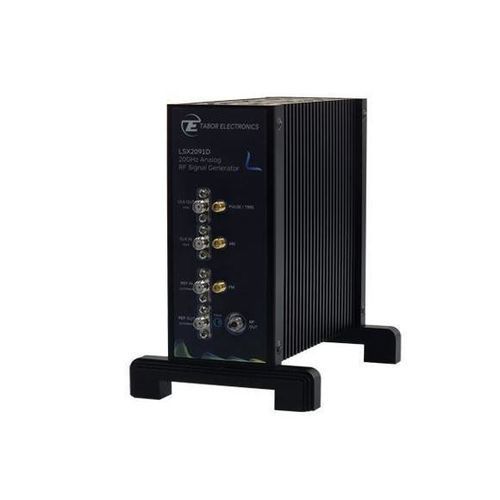

The Lucid-X LSX8081D is a compact, modular microwave signal generator in a desktop form factor. Engineered for low phase noise and high spectral purity, the platform family supports frequencies up to 40 GHz and coherent multi-platform operation for demanding RF test and measurement applications.

Summary

• Fast switching speed: <10 μs (platform-dependent)
• Coherent frequency switching and multi-channel synchronization
• Analog modulation: AM, FM, PM; Sweep and Pulse modulation; Pattern modes available
• Phase noise (typical, 10 kHz offset): -148 dBc/Hz @100 MHz; -133 dBc/Hz @1 GHz; -114 dBc/Hz @10 GHz
• Integrated LAN, USB and SPI interfaces; SCPI/VISA remote control

Features — Signal Integrity and Purity
The Lucid-X architecture delivers very low phase noise and excellent spectral purity across applicable frequency bands (family support up to 40 GHz). The product is suitable as a local oscillator source, for intermodulation distortion (IMD) measurements and for high-performance DAC/ADC clocking. Typical harmonics are around -50 dBc; non-harmonics typically -90 dBc.

Features — Analog and Pulse Modulation
Built-in modulation includes AM, FM and PM plus sweep and pulse capabilities. FM supports deviations up to 10 MHz and modulation rates up to 1 MHz. AM provides linear depth up to 90% with rates to 100 kHz. PM supports peak deviations to 360°. Pulse modulation achieves high on/off ratio (~70 dB typical) with rise/fall times <15 ns. Pattern and fast pulse timing modes support radar, EW and secure communications testing.

Features — Fast Frequency Switching
Ultra-fast frequency switching (down to 10 μs on applicable platforms) minimizes dead time in automated test sequences and enables realistic simulation of frequency-hopping or pulse-to-pulse environments used in radar, EW and advanced communications.

Features — Control and Programming
Standard remote control via SCPI/VISA and compatibility with Python, MATLAB, C#/C++, and LabVIEW. Includes a virtual front panel (GUI) for local or network operation. Supports coherent multi-channel operation and synchronization for phased arrays, multi-channel test setups and quantum-control applications.

Ordering Info
Model | Description
LSX80811D | 8GHz Single Channel Desktop Microwave Signal Generator Module

Options (code | description | applicable models):
MOD | Modulation package (AM, FM, PM) | X/R/B/D/P
LP | Low power option -70 dBm. Included for B/R/X. | D/P
ELP1 | 1 channel, extended low power range. Not available for 4 channels. | B/R
ELP2 | 2 channels, extended low power range. Not available for 4 channels. | B/R
EPR1 | 1 channel, extended power range -130 dBm to +27 dBm. Not available for 4 channels. | B/R
EPR2 | 2 channel, extended power range -130 dBm to +27 dBm. Not available for 4 channels. | B/R
PLS | Pulse modulation | X/R/B/D/P
PAT | Pattern modulation | X/R/B/D/P
FS | Fast switching 100 μs | X/R/B/D
UFS | Ultra-fast switching 10 μs | B/R
BAT | 4-cell, replaceable extra battery 39 Wh | P
BAT2 | 4-cell, replaceable extra battery 98 Wh | P
CHA | External charger | P
LAN | USB Ethernet adapter | P
W-RACK | Rack-mount kit | B/R
WE | 1-year warranty extension (standard warranty 3 years) | X/R/B/D/P

Note
Model form factors: X = PXIe, R = Rackmount, B = Benchtop, D = Desktop, P = Portable.

Technical specifications

• Model: LSX8081D (8 GHz single-channel desktop microwave signal generator)
• Frequency coverage (platform family): up to 40 GHz (model-dependent)
• Phase noise (typical at 10 kHz offset): -148 dBc/Hz @100 MHz; -133 dBc/Hz @1 GHz; -114 dBc/Hz @10 GHz
• Harmonics: typically -50 dBc; non-harmonics: typically -90 dBc
• Frequency switching: ultra-fast 10 μs (platform option), fast 100 μs
• Analog modulation: AM, FM, PM, Sweep supported
• FM: max deviation up to 10 MHz; rates up to 1 MHz
• AM: linear depth up to 90%; rates up to 100 kHz
• PM: peak deviation up to 360 degrees
• Pulse modulation: typical on/off ratio ~70 dB; rise/fall times <15 ns
• Pattern/pulse modes supported (PAT option)
• Output power and extended power/low-power options available (EPR / LP options)
• Interfaces: LAN, USB, SPI (integrated); optional USB-Ethernet adapter
• Control: SCPI/VISA; Python, MATLAB, C#/C++, LabVIEW; virtual front panel GUI
• Form factors: Desktop, PXIe module, Benchtop, Rackmount, Portable
• Typical applications: Local Oscillators, IMD measurements, DAC/ADC clocking, Radar STALO, EW, quantum control, phased arrays
