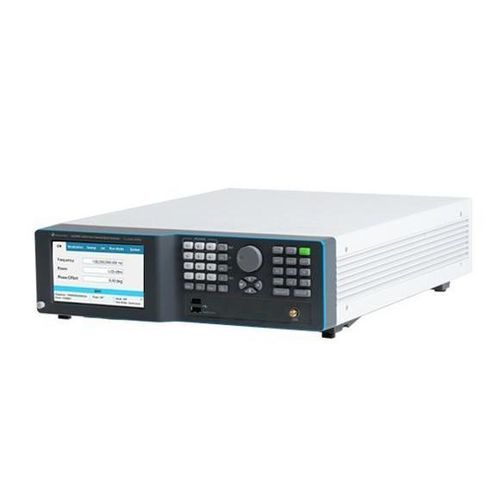

Signal generator LSX8081B

microwaveRFsingle-channel

Overview
The LSX8081B is the 8 GHz single-channel benchtop member of the Lucid-X modular microwave signal generator family. Designed for test and instrumentation applications, it delivers low phase noise, broad modulation capabilities and configurable fast switching in a compact benchtop form factor.

Key features

• 8 GHz single-channel benchtop microwave signal generator
• Fast switching: <10 μs typical (UFS option); FS option for 100 μs
• Coherent frequency switching for multi-tone and hopping tests
• Analog modulation: AM, FM, PM, Sweep and Pulse
• Integrated LAN and USB interfaces for remote control

Signal integrity and purity
The Lucid-X family provides very low phase noise across its frequency range, suitable for local oscillator, IMD and DAC/ADC clocking applications. Example phase noise (10 kHz offset): -148 dBc/Hz @100 MHz, -133 dBc/Hz @1 GHz, -114 dBc/Hz @10 GHz. Harmonics typically -50 dBc; non-harmonics typically -90 dBc.

Analog and pulse modulation
The LSX8081B supports extensive analog and pulse modulation:

• FM: deviations up to 10 MHz; rates up to 1 MHz
• AM: linear depth up to 90%; rates up to 100 kHz
• PM: peak deviation up to 360°
• Pulse modulation: high on/off ratio (~70 dB); rise/fall times <15 ns

Fast frequency switching
Fast switching modes (10 μs UFS option, 100 μs FS option) suit automated test, frequency-hopping simulations, radar/EW emulation and high-throughput manufacturing test environments.

Control and programming
Standard SCPI/VISA command set with LAN and USB interfaces. Integration supported via Python, MATLAB, C#/C++, LabVIEW and NI tools. Virtual front panel available for local or remote GUI control.

Ordering Info
LSX8081B | 8 GHz Single Channel Microwave Benchtop Signal Generator

Options (summary)
MOD - Modulation package (AM, FM, PM); PLS - Pulse modulation; PAT - Pattern modulation; FS - Fast switching 100 μs; UFS - Ultra-fast switching 10 μs; LP / ELP / EPR - low/extended power options; BAT / CHA / LAN adapters and rack accessories.

Caractéristiques / spécifications techniques

• Product type: 8 GHz single-channel microwave signal generator (benchtop)
• Family: Lucid-X (LSX) series; modular: Desktop, PXIe, Benchtop, Rack, Portable
• Frequency coverage: family up to 40 GHz (LSX8081B = 8 GHz)
• Phase noise (10 kHz offset examples): -148 dBc/Hz @100 MHz; -133 dBc/Hz @1 GHz; -114 dBc/Hz @10 GHz
• Harmonics: typically -50 dBc; non-harmonics: typically -90 dBc
• Fast switching: <10 μs (UFS); 100 μs (FS)
• Modulation: AM, FM (≤10 MHz deviation, ≤1 MHz rates), PM (≤360°), Sweep, Pulse (on/off ≈70 dB, rise/fall <15 ns)
• Interfaces: LAN, USB; optional USB‑Ethernet adapter; SCPI/VISA remote control
• Programming: Python, MATLAB, C#/C++, LabVIEW; virtual front panel included
• Form factors: Benchtop (this product), Desktop, PXIe module, Rackmount, Portable
• Typical applications: LO for radar/STALO, IMD measurements, DAC/ADC clocking, radar/EW simulation, communications testing, phased-array setups
