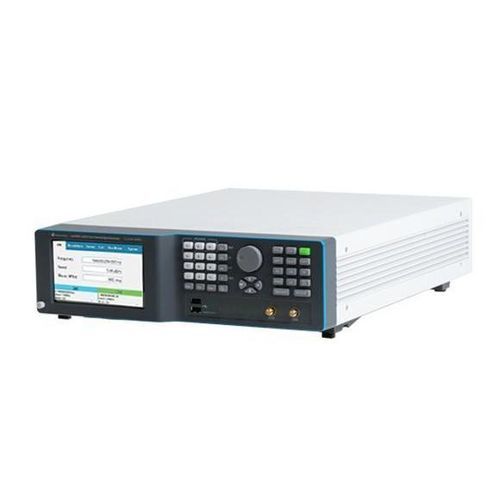

Signal generator LSX1492B

microwaveRFsingle-channel

Overview
The Lucid-X (LSX) is a small-footprint, modular microwave signal generator available in multiple form factors (Desktop, PXIe module, Benchtop, Rackmount, Portable). Designed for low phase noise and high spectral purity, the family supports frequencies up to 40 GHz and is intended for demanding RF and microwave applications including LO sources, radar, EW and precision DAC/ADC clocking.

Key features

• Small footprint, modular architecture (multiple form factors: Desktop, PXIe, Benchtop, Rackmount, Portable)
• Frequency range up to 40 GHz (family capability)
• Fast frequency switching: 10 μs (ultra-fast); also supports 100 μs fast switching option
• Coherent frequency switching (phase-coherent multi-channel/synchronized operation)
• Analog modulation: AM, FM, PM, Sweep and Pulse Modulation
• Pulse modulation: high on/off ratio (typically 70 dB), rise/fall times < 15 ns
• Integrated interfaces: LAN, USB and SPI
• Control & programming via industry-standard SCPI/VISA; supports Python, MATLAB, C#/C++, NI LabVIEW and includes a virtual front panel

Modulation & signal generation capabilities

• Frequency Modulation (FM): maximum deviations up to 10 MHz, modulation rates up to 1 MHz
• Amplitude Modulation (AM): linear depth up to 90%, rates up to 100 kHz
• Phase Modulation (PM): peak deviation up to 360°
• Pulse Modulation: high on/off ratio (~70 dB), very fast edge times (<15 ns)
• Pattern modulation and additional digital/pulse pattern capabilities (options available)

Signal integrity & purity

• Phase noise examples (family typical): -148 dBc/Hz @100 MHz (10 kHz offset), -133 dBc/Hz @1 GHz (10 kHz offset), -114 dBc/Hz @10 GHz (10 kHz offset)
• Harmonics: ~ -50 dBc
• Non-harmonic spurious: ~ -90 dBc

Applications

• Radar local oscillator (STALO) and radar test systems
• Electronic warfare (EW) simulation and threat emulation
• Communications (analog comms test, FM/AM/PM modulation tests)
• Precision LO/clocks for DAC/ADC, intermodulation/distortion testing, beam-forming and phased-array test

Ordering summary (table)
Model: LSX1492B — Description: 14GHz Dual Channel Microwave Benchtop Signal Generator
Options (examples): MOD = Modulation package (AM, FM, PM); LP = Low power option (-70 dBm); PLS = Pulse modulation; PAT = Pattern modulation; FS = Fast switching (100 µs); UFS = Ultra-fast switching (10 µs); BAT / BAT2 = portable battery options; W-RACK = Rack-mount kit

Remarks

• Multiple platform form factors and option packages must be selected at time of purchase (PXIe / Rackmount / Benchtop / Desktop / Portable variants).
• Advanced instruments in the family offer phase-coherent multi-channel configurations for synchronized multi-channel applications.

Technical specifications

• Model name: LSX1492B
• Product type: Dual-channel microwave signal generator (Benchtop)
• Frequency capability (family): up to 40 GHz (model-dependent)
• Phase noise (examples): -148 dBc/Hz @100 MHz (10 kHz offset); -133 dBc/Hz @1 GHz (10 kHz offset); -114 dBc/Hz @10 GHz (10 kHz offset)
• Harmonics: approx. -50 dBc; Non-harmonics: approx. -90 dBc
• Switching: Ultra-fast switching option UFS = 10 μs; FS = 100 μs
• Modulation: AM / FM / PM / Sweep / Pulse / Pattern; FM deviation up to 10 MHz; AM depth up to 90%; PM peak deviation 360°
• Pulse mod performance: on/off ratio typically 70 dB; rise/fall times <15 ns
• Interfaces: LAN, USB, SPI; supports SCPI/VISA remote control
• Programming: Python, MATLAB, C#/C++, LabVIEW; virtual front panel included
• Form factors: Desktop, Benchtop, PXIe, Rackmount, Portable
