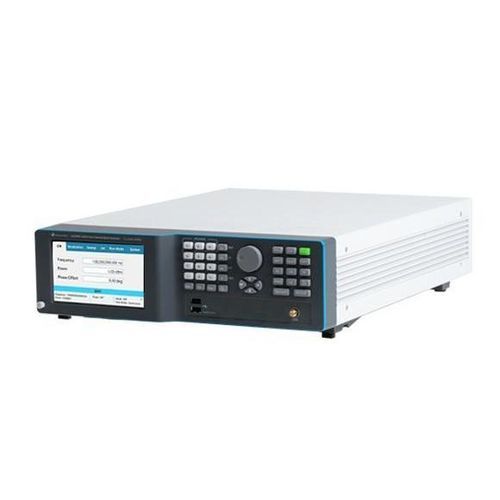

Signal generator LSX4091B

microwaveRFsingle-channel

Product Overview
The Lucid-X LSX4091B is a small-footprint, modular microwave signal generator available in multiple form factors (Desktop, PXIe module, Benchtop, Rackmount, Portable). It is designed for low phase noise and supports a frequency range up to 40 GHz.

Key Features

• Fast switching speed <10 μs (Ultra-fast switching option available)
• Coherent frequency switching
• AM, FM, PM, Sweep & Pulse modulation
• Phase noise: -133 dBc/Hz @ 1 GHz (example specification shown on page)
• LAN, USB and SPI integrated interfaces

Signal Integrity and Purity
The LSX family delivers exceptionally low phase noise across the band up to 40 GHz and is engineered for high-performance applications such as local oscillators, intermodulation distortion measurements, and DAC/ADC clocking. Example phase-noise performance at 10 kHz offset: -148 dBc/Hz @ 100 MHz; -133 dBc/Hz @ 1 GHz; -114 dBc/Hz @ 10 GHz. Harmonics typically -50 dBc; non-harmonics typically -90 dBc.

Fast Frequency Switching
The LSX provides a 10 μs frequency switching capability (with an ultra-fast 10 μs option noted), enabling rapid pulse-to-pulse changes required for frequency-hopping, radar and electronic-warfare simulations, and high-throughput automated test systems.

Analog and Pulse Modulation
The instrument supports built-in analog modulation and pulse features:

• FM: maximum deviations up to 10 MHz and rates up to 1 MHz
• AM: linear depth up to 90%, rates up to 100 kHz
• PM: peak deviation up to 360°
• Pulse modulation: high on/off ratio (typ. 70 dB) with rise/fall times <15 ns

Control and Programming
Designed for integration and automation, the LSX supports industry-standard SCPI and VISA control architectures and common programming environments (Python, MATLAB, C#/C++, LabVIEW). A virtual front panel is provided for local or networked graphical control.

Applications

• Radar systems (stable local oscillator - STALO)
• Electronic warfare and frequency-hopping threat simulation
• Communications (analog signal simulation, transmitter/receiver test)
• Phase-coherent multi-channel testbeds (quantum physics, phased arrays)

Ordering Info (excerpt)
Model | Description
LSX4091B | 40GHz Single Channel Microwave Benchtop Signal Generator

Options | Description | Models
MOD | Modulation package (AM, FM, PM) | X/R/B/D/P
LP | Low power option -70 dBm (included for B/R/X) | D/P
ELP1 | 1 channel, extended low power range (not for 4 channels) | B/R
ELP2 | 2 channels, extended low power range (not for 4 channels) | B/R
EPR1 | 1 channel, extended power range -130 dBm to +27 dBm (not for 4 channels) | B/R
EPR2 | 2 channel, extended power range -130 dBm to +27 dBm (not for 4 channels) | B/R
PLS | Pulse modulation | X/R/B/D/P
PAT | Pattern modulation | X/R/B/D/P
FS | Fast switching 100 μs | X/R/B/D
UFS | Ultra-fast switching 10 μs | B/R
BAT / BAT2 / CHA / LAN / W-RACK / WE | Battery / charger / USB-Ethernet adapter / rack kit / warranty extension options | see ordering table

Notes
Product family name: Lucid-X (LSX series). Specific model LSX4091B is the 40 GHz single-channel benchtop variant.
