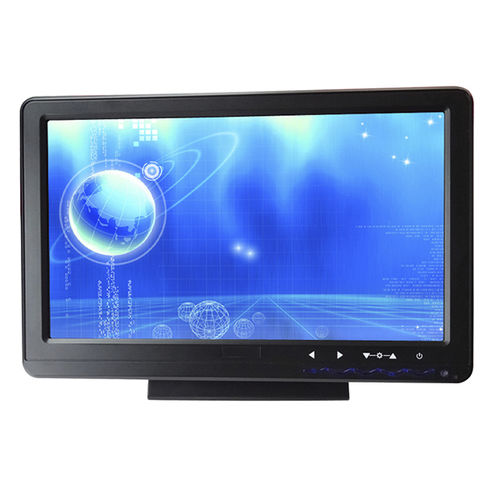

LCD monitor AMG-10IPAM02T1resistive touch screenLED backlightprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, projected capacitive touchscreen, resistive touch screen, 5-wire resistive touch screen, LED backlight
- Applications
- for industrial machines, for HMI interface
- Display size
- 10.1"
- Resolution
- 1024 x 600
- Mounting
- VESA mounting, desktop, flush-mount
- Other characteristics
- HDMI, USB, wide viewing angle, Windows 7, customizable
- Length
255 mm
(10.039 in)- Width
150 mm
(5.9055 in)- Thickness
23.6 mm
(0.929 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)
Description
Product Overview
The industrial flush rear mount LCD monitor AMG-10IPAM02T1 from Amongo has the following exceptional benefits:
Features
Caractéristiques / Spécifications techniques
The industrial flush rear mount LCD monitor AMG-10IPAM02T1 from Amongo has the following exceptional benefits:
- Branded LCD panels with perfect image quality and wide viewing angles
- Built with industrial-grade components for a reliable 24/7 long time operation
- Touchscreen can be optional from PCAP, Resistive etc
- Easy-to-install in a desktop holder with VESA holes backside
- Good choice for application for console or control center
- Customization solution available
Features
- Branded LCD panels with perfect image quality and wide viewing angles
- Built with industrial-grade components for reliable 24/7 operation
- Optional touchscreen: PCAP, Resistive, etc.
- VESA-compatible backside; easy to install in a desktop holder
- Suitable for console or control center applications
- Customization options available
Caractéristiques / Spécifications techniques
- Model Name: AMG-10IPAM02T1
- Screen Size: 10.1"
- Display Resolution (pixel): 1024x600
- Contrast Ratio: 500:1
- Aspect Ratio: 16:9
- Touch screen (optional): 4-Wire Resistive Touch (5-Wire optional)
- Brightness (cd/㎡): 250 / 450 nits
- Backlight: LED
- Viewing Angles (CR =10): 140H x 90V
- Power Consumption: ≤8W
- Dimension (V x H x T): 255 x 150 x 236 (stretching)
- Touch Interface: USB (RS232 optional)
- Input Voltage: DC12V ±15%
- HDMI Format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50/60Hz)
- Operating Systems Support: Windows 7
- Operating Temperature: -20 to 50 ℃
- Storage Temperature: -30 to 65 ℃
- Relative Humidity: 5(%RH) to 90(%RH)
