LCD monitor AMG-21OPSL01T1
LED backlightPCAP touchscreenPOS

LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS
LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS
LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 2
LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 3
LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 4
LCD monitor - AMG-21OPSL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / PCAP touchscreen / POS - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, PCAP touchscreen, LED backlight
Applications
for industrial machines, for digital signage, marine, for HMI interface, POS
Display size
21.5"
Resolution
1920 x 1080, full HD
Mounting
VESA mounting, rack-mount
Other characteristics
HDMI, USB, VGA, DVI port, aluminum, IP65, NEMA 4
Width

476.064 mm
(18.7427 in)

Height

267.786 mm
(10.5428 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product overview

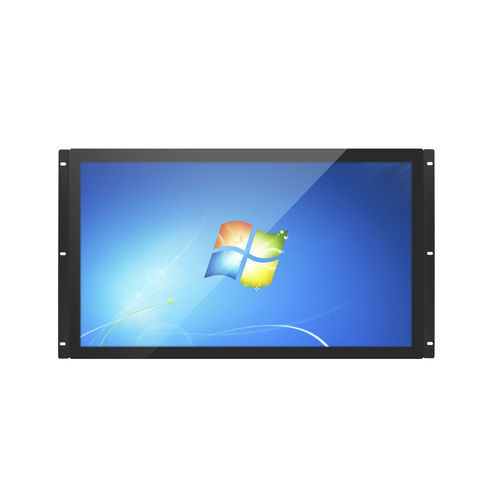

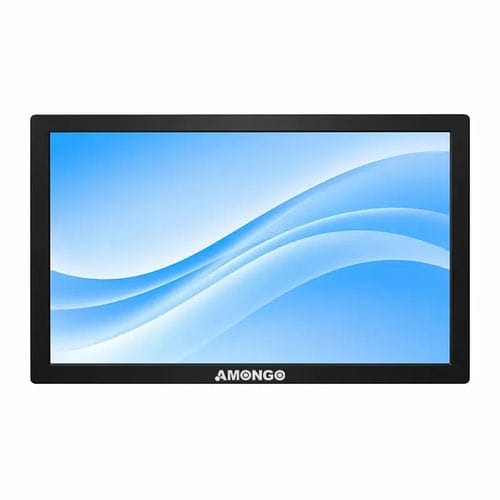

The AMG-21OPSL01T1 is a 21.5-inch industrial rack-mount LCD monitor designed for demanding environments. It offers Full HD resolution and optional PCAP 10-point touch input.

Key features
  • 21.5-inch Full HD (1920×1080) display
  • PCAP 10-point touch (optional)
  • Aluminum front panel with IP65 / NEMA 4 protection
  • Multiple signal inputs: VGA, DVI-D, HDMI, audio
  • LED backlight, 250 nits brightness, 3000:1 contrast
  • VESA/edge strip rack mounting and USB touch controller


Typical applications
  • Industrial automation and control panels
  • Kiosk and vending terminals (VTM)
  • Marine and oil & gas control stations
  • Self-service and non-cash equipment


Specifications
Model: AMG-21OPSL01T1
Screen size: 21.5-inch
Active display area (mm): 476.064 × 267.786
Pixel pitch (mm): 0.24795 × 0.24795
Display mode: Normally Black
Resolution: 1920×1080
Contrast ratio: 3000:1
Color: 16.7M
Brightness: 250 nits
Backlight: LED
Viewing angles (CR=10): 178°/178°
Response time: 18 ms (Typ.)
Touch screen: PCAP 10-point (optional)
Signal connectors: VGA / DVI-D / HDMI / Audio
Power input: DC 12V
Touch controller: USB
Operating temperature: 0 ~ 50 °C (non-condensing)
Storage temperature: -20 ~ 60 °C (non-condensing)
Relative humidity: 5% ~ 90% RH

Technical specifications
  • Model: AMG-21OPSL01T1
  • Display: 21.5-inch Full HD 1920×1080
  • Brightness: 250 nits; Contrast: 3000:1
  • Touch: PCAP 10-point (optional), controller USB
  • Inputs: VGA, DVI-D, HDMI, audio
  • Power: DC 12V
  • Front protection: IP65 / NEMA 4 (aluminum front panel)
  • Operating temperature and humidity as specified above
