LCD monitor AMG-07OPDX01T1

resistive touch screenLED backlightinfrared touchscreen

Overview

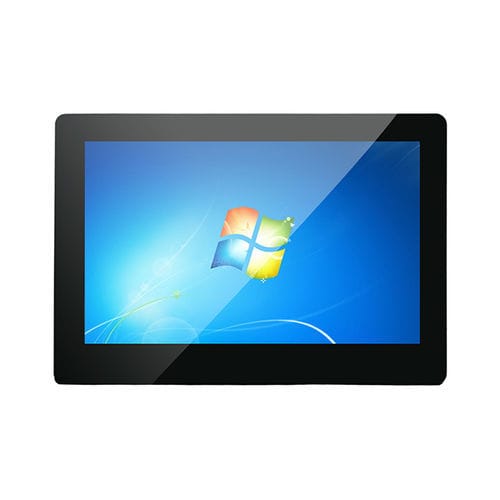

Industrial 7-inch VESA wall-mount LCD monitor AMG-07OPDX01T1 manufactured by Amongo. Full-metal housing with rear VESA mounting, designed for continuous 24/7 operation in demanding environments.

Main features

• Branded LCD panel with wide viewing angles; industrial-grade components for reliable long-time operation.
• Multiple touchscreen options: PCAP, resistive, IR, SAW.
• Durable mechanical design for harsh environmental conditions.
• IP-rating compliance for resistance to water, dust and dirt; anti-shock and anti-vibration properties.
• Customization and configuration services available.

Technical specifications

• Model Name: AMG-07OPDX01T1
• Screen Size: 7"
• Active Display Area (mm): 153.6(H) x 90(V)
• Pixel Pitch (mm): 0.15(H) x 0.15(V)
• Display Mode: Normally White
• Display Resolution (pixel): 1024 x 600
• Contrast Ratio: 700:1
• Display Color / Touch: PCAP TouchScreen (option)
• Brightness: 600 cd/m²
• Backlight: LED
• Viewing Angles (CR =10): 160° (H) x 130° (V)
• Response Time (Typ. Tr+Tf): 25 ms
• Signal Connector: VGA / DVI / USB
• Power Consumption: DC 12V
• Dimension (V x H x T): 180 x 122 x 28.9 mm
• Operating Temperature: -20～60℃
• Storage Temperature: -30～70℃
• Relative Humidity: 5%RH ～ 90%RH

Applications

• Human-Machine Interfaces (HMI), industrial automation, control panels, marine and transportation displays, oil & gas and outdoor-enclosure installations where VESA wall mounting and touchscreen options are required.
