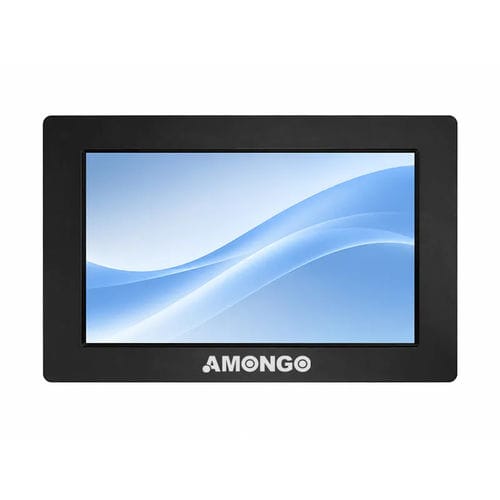

LCD monitor AMG-18IPPC01T2

multitouch screenLED backlightPCAP touchscreen

Product overview
AMG-18IPPC01T2 is an 18.5" panel-mount industrial LCD monitor from Amongo for industrial and commercial environments. It integrates brand LCD panels, industrial-grade components for continuous operation and multiple touchscreen options with IP-rated front protection.

Key features

• PCAP multi-touch (10-point)
• Aluminum panel-front cover
• IP65 waterproof/dust-proof/vandal-resistant front
• LED backlight, 250 nits brightness
• Multiple signal inputs: VGA / DVI-D / HDMI; touch via USB

Typical applications

• Industrial equipment and HMI
• Kiosks and control stations
• Rail and transportation displays

Specifications
Model: AMG-18IPPC01T2
Screen size: 18.5"
Active display area (mm): 409.8(H) x 230.4(V)
Pixel pitch (mm): 0.3 x 0.3
Display mode: Normally white
Resolution: 1366 x 768
Colors: 16.7M
Contrast ratio: 1000:1
Brightness: 250 nits
Backlight: LED
Viewing angles (CR=10): 170° (H); 160° (V)
Response time: 5 ms (Typ.)
Touch screen: PCAP touch (10 points)
Signal connector: VGA / DVI-D / HDMI / Audio / USB
Power input: DC 12V
Operating temperature: 0 ~ 50 °C (non-condensing)
Storage temperature: -20 ~ 60 °C (non-condensing)
Relative humidity: 5% ~ 90% RH

Technical specifications

• Model name: AMG-18IPPC01T2
• Diagonal: 18.5"
• Active area: 409.8 x 230.4 mm
• Resolution: 1366 x 768
• Pixel pitch: 0.3 x 0.3 mm
• Colors: 16.7M
• Contrast: 1000:1
• Brightness: 250 cd/m²
• Backlight: LED
• Viewing angles: 170° / 160°
• Response time: 5 ms
• Touch: PCAP 10-point
• Inputs: VGA / DVI-D / HDMI / Audio / USB
• Power: DC 12V
• Dimensions (VxHxT): 512 x 332 x 56.8 mm
• Operating temp.: 0 ~ 50 °C
• Storage temp.: -20 ~ 60 °C
• Humidity: 5% ~ 90% RH
