LCD monitor AMG-10IPZL01T1
resistive touch screenLED backlightPCAP touchscreen

LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 2
LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 3
LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 4
LCD monitor - AMG-10IPZL01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, resistive touch screen, PCAP touchscreen, LED backlight
Applications
industrial, for HMI interface
Display size
10.4"
Resolution
1024 x 768
Mounting
VESA mounting, rack-mount
Other characteristics
USB, VGA, DVI port, IP65, NEMA 4
Width

188.6 mm
(7.4252 in)

Height

242.6 mm
(9.5512 in)

Thickness

45.8 mm
(1.803 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Overview

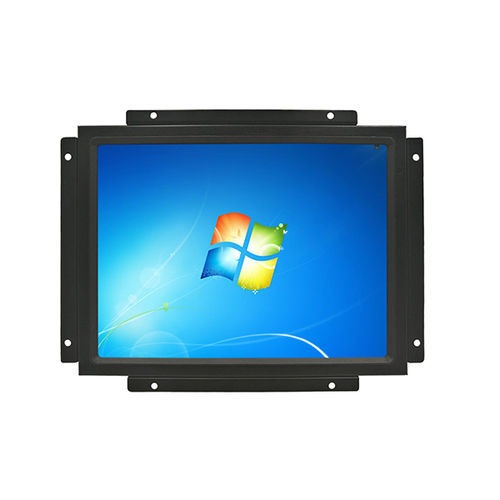

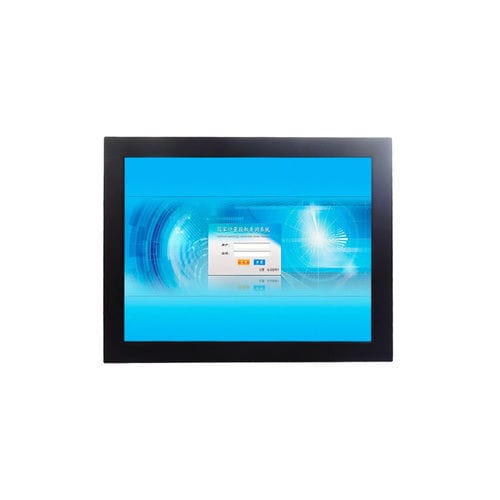

The AMG-10IPZL01T1 industrial 10.4" rear-mount LCD monitor from Amongo is designed for installation in rack systems and harsh environments. It integrates industrial-grade components for continuous operation and offers optional touchscreen interfaces.

Key features
  • Touchscreen options: PCAP, resistive (optional)
  • Rear/rack mount with VESA-compatible holes
  • Front panel: aluminium/metal with IP65 / NEMA 4 protection
  • Industrial components for reliable 24/7 operation
  • Multiple signal inputs: VGA, DVI, USB


Typical applications
  • Industrial equipment and rack-mounted control systems
  • Railway and transport control centers


Specification
Model Name: AMG-10IPZL01T1
Screen Size: 10.4"
Active Display Area (mm): 211.2(H)x158.4(V)
Pixel Pitch (mm): 0.20625(H)x0.20625(V)
Display Mode: Normally white
Display Resolution (pixel): 1024 x 768
Colors: 16.7M
Contrast Ratio: 900:1
Brightness: 1000 nits (Light Sensor)
Backlight: LED
Viewing Angles (CR=10): 150° (H) x 150° (V)
Response Time (Typ. Tr+Tf): 16 ms
Touchscreen: PCAP or resistive (optional)
Signal Inputs: VGA, DVI, USB
Power: DC 12V 4A
Dimensions (VxHxT): 242.6 x 188.6 x 45.8 mm
Operating Temperature: -20 to 70 °C
Storage Temperature: -30 to 80 °C
Relative Humidity: 5% to 90% RH

Technical characteristics
  • Model: AMG-10IPZL01T1
  • Mounting: Rear / rack-mount (VESA-compatible)
  • Front panel: Aluminum/metal, IP65 / NEMA 4
  • Continuous operation: industrial-grade components for 24/7 use
  • Optional touchscreen: PCAP, resistive
  • Signal & power: VGA, DVI, USB; DC 12V 4A
  • Operating range: -20 to 70 °C; storage -30 to 80 °C; 5% to 90% RH
