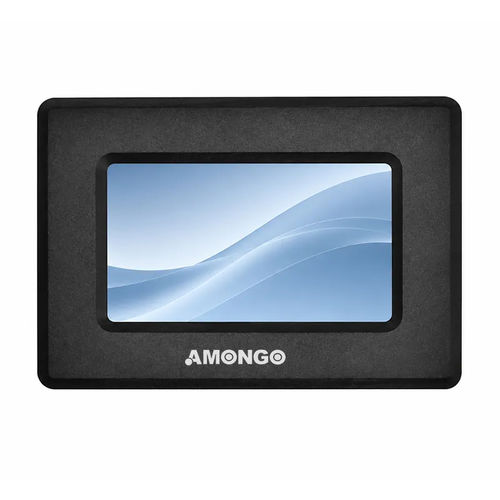

LCD monitor AMG-07IPPC01T1resistive touch screenLED backlightfor industrial machines
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, LED backlight
- Applications
- for industrial machines
- Display size
- 7"
- Resolution
- 800 x 480
- Mounting
- panel-mount
- Other characteristics
- VGA, DVI port, wide viewing angle, custom-made
- Width
152.4 mm
(6 in)- Height
91.44 mm
(3.6 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview
This 7-inch industrial-grade LCD panel display is designed for industrial and commercial applications.
Key features
Typical applications
Specification
Screen Size: 7"
Active Display Area (mm): 152.4 (H) x 91.44 (V)
Pixel Pitch (mm): 0.1905 (H) x 0.1905 (V)
Display Mode: Normally white
Display Resolution (pixel): 800x480
Contrast Ratio: 500:1
Display Color: 16.2M
Brightness: 350 nits
Backlight: LED
Viewing Angles (CR=10): 110 (H); 130 (V)
Response Time (Typ. Tr+Tf): 30 ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V
Operating Temperature: -20～70℃
Storage Temperature: -20～70℃
Relative Humidity: 5(%RH)～90(%RH)
Caractéristiques / spécifications techniques
This 7-inch industrial-grade LCD panel display is designed for industrial and commercial applications.
Key features
- Shock & vibration resistant
- Customizable
- Superb image quality & wide viewing angle
- Industrial-grade components
Typical applications
- Industrial equipment
- AFC
- Logistics cabinet
Specification
Screen Size: 7"
Active Display Area (mm): 152.4 (H) x 91.44 (V)
Pixel Pitch (mm): 0.1905 (H) x 0.1905 (V)
Display Mode: Normally white
Display Resolution (pixel): 800x480
Contrast Ratio: 500:1
Display Color: 16.2M
Brightness: 350 nits
Backlight: LED
Viewing Angles (CR=10): 110 (H); 130 (V)
Response Time (Typ. Tr+Tf): 30 ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V
Operating Temperature: -20～70℃
Storage Temperature: -20～70℃
Relative Humidity: 5(%RH)～90(%RH)
Caractéristiques / spécifications techniques
- Screen Size: 7"
- Active Display Area: 152.4 x 91.44 mm
- Pixel Pitch: 0.1905 x 0.1905 mm
- Resolution: 800 x 480
- Display Mode: Normally white
- Contrast Ratio: 500:1
- Colors: 16.2M
- Brightness: 350 nits
- Backlight Type: LED
- Viewing Angles: 110° (H) / 130° (V)
- Response Time: 30 ms (typ.)
- Touch Option: Resistive touchscreen
- Signal Inputs: VGA, DVI
- Power: DC 12V
- Operating Temperature Range: -20 to 70 °C
- Storage Temperature Range: -20 to 70 °C
- Relative Humidity: 5% to 90% RH
