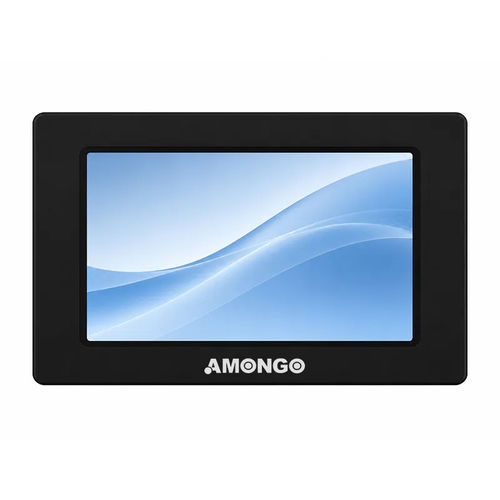

LCD monitor AMG-11IPPC01T1

multitouch screenLED backlightPCAP touchscreen

Overview
This 11.6-inch panel-mount PCAP touch LCD monitor (model AMG-11IPPC01T1) features an aluminum frame and industrial-grade components for continuous operation in demanding environments.

Key features

• PCAP 10-point multi-touch with USB controller
• 11.6" full HD (1920×1080) display with LED backlight
• Wide viewing angles: 178° horizontal / 178° vertical
• Aluminum panel-mount frame for installation in control cabinets and enclosures
• Operating temperature 0–50°C; storage -10–60°C; relative humidity 5%–90% RH

Typical applications

• Industrial automation & HMI
• Railway and transportation panels
• Kiosks, control cabinets and monitoring stations

Technical specifications

• Model Name: AMG-11IPPC01T1
• Screen Size: 11.6"
• Active Display Area (mm): 270.37 (H) × 159.79 (V)
• Pixel Pitch (mm): 0.13455 (H) × 0.13455 (V)
• Display Mode: Normally black
• Display Resolution: 1920×1080 (16.7M colors)
• Contrast Ratio: 1000:1
• Brightness: 300 nits
• Backlight: LED
• Viewing Angles (CR=10): 178° (H) / 178° (V)
• Response Time (Typ. Tr+Tf): 25 ms
• Touch Screen: PCAP Touch (10 points)
• Signal Connector: VGA / DVI-D
• Touch Controller: USB
• Power Input: DC 12V
• Dimensions (V×H×T): 337 × 225 × 45 mm
• Operating Temperature: 0–50°C
• Storage Temperature: -10–60°C
• Relative Humidity: 5%–90% RH
