TFT-LCD monitor AMG-19IPPC02G1

resistive touch screenLED backlightprojected capacitive touchscreen

Product overview

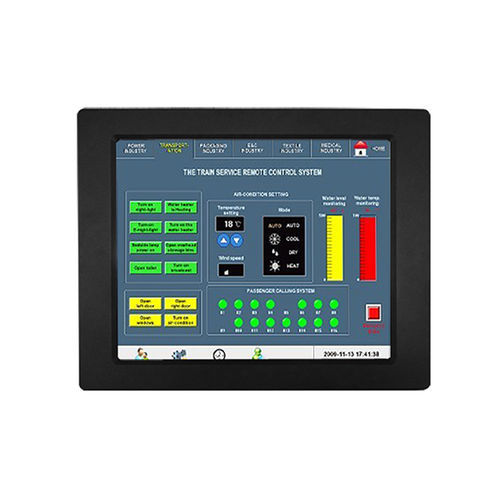

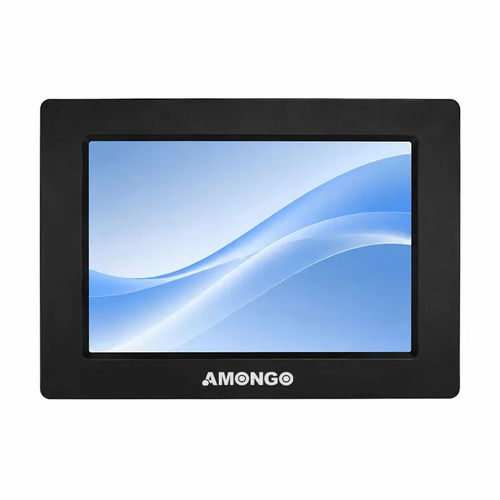

The AMG-19IPPC02G1 is a 19-inch panel-mount industrial LCD monitor with 3 mm tempered glass and optional touchscreen interfaces. Designed for continuous 24/7 operation in harsh industrial and transportation environments, it features an LED backlight and industrial-grade components for reliable performance.

Key features

• Industrial-grade components for continuous operation
• 3 mm tempered glass front panel; optional touchscreen: PCAP, resistive, IR, SAW
• Shock and vibration resistant mechanical design
• Wide viewing angles and 350 cd/m² brightness with LED backlight
• Multiple signal inputs: VGA and DVI; DC 12V power input
• Customizable options and IP-rated protection available

Typical applications

• Industrial equipment and machine control panels
• Railway and transportation systems
• Process control, kiosks and HMI installations

Specifications
Model: AMG-19IPPC02G1
Screen size: 19-inch
Active display area (mm): 376.32 (H) x 301.06 (V)
Pixel pitch (mm): 0.294 (H) x 0.294 (V)
Display mode: Normally White
Resolution: 1280 x 1024
Contrast ratio: 1000:1
Colors: 16.7M
Brightness: 350 cd/m²
Backlight: LED
Viewing angles (CR=10): 170° (H) / 160° (V)
Response time: 5 ms (typ.)
Touchscreen: Optional (PCAP, resistive, IR, SAW)
Tempered glass thickness: 3 mm
Signal connector: VGA, DVI
Power input: DC 12V
Operating temperature: 0 to 50 °C
Storage temperature: -20 to 60 °C
Relative humidity: 5% to 90% RH
Dimensions (V x H x T): 480.6 x 382.59 x 56.8 mm

Technical specifications

• Model: AMG-19IPPC02G1
• Screen: 19-inch TFT LCD
• Resolution: 1280 x 1024 pixels
• Brightness: 350 cd/m²
• Contrast ratio: 1000:1
• Colors: 16.7 million
• Backlight: LED
• Viewing angles: 170° horizontal / 160° vertical
• Response time: 5 ms (typ.)
• Pixel pitch: 0.294 x 0.294 mm
• Inputs: VGA, DVI
• Power: DC 12V
• Dimensions: 480.6 x 382.59 x 56.8 mm
• Operating temperature: 0 to 50 °C; Storage: -20 to 60 °C
• Humidity: 5% to 90% RH
• Front surface: 3 mm tempered glass / optional touchscreen
