LCD monitor AMG-19OPKJ01T1

multitouch screenresistive touch screenLED backlight

Product description

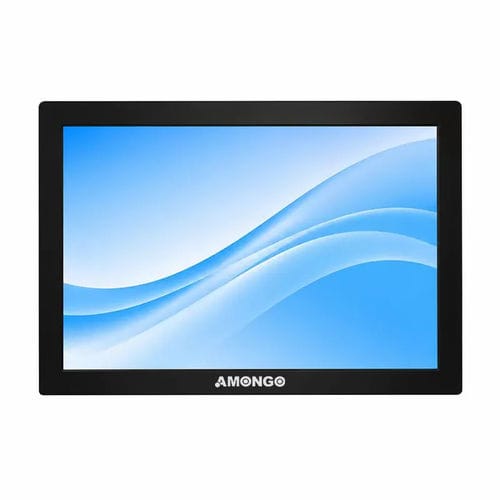

The AMG-19OPKJ01T1 is a 19-inch industrial VESA wall-mount LCD monitor with a full-metal housing and LED backlight. It integrates industrial-grade components and is available with multiple touch options (PCAP, resistive, IR, SAW). The unit is designed for continuous operation in commercial and industrial environments and supports rear VESA mounting for wall or panel installation.

Key features

• Full-metal housing with rear VESA mounting
• Full-flat surface; PCAP 10-point multi-touch option
• Selectable brightness levels: 250 / 300 / 350 / 400 nits
• Aluminum profile metal parts and optimized heat dissipation
• LED backlight; ELO-compatible touch alternative
• Signal interfaces: VGA, DVI-D; power: DC 12V; touch controller: USB

Typical applications

• Industrial automation and HMI panels
• Kiosk systems and AFC (automatic fare collection)
• Gas & oil equipment
• Marine and maritime displays

Specification
Model Name: AMG-19OPKJ01T1
Screen Size: 19"
Active Display Area (mm): 376.32(H) x 301.06(V)
Pixel Pitch (mm): 0.294(H) x 0.294(V)
Display Mode: Normally white
Display Resolution (pixel): 1280 x 1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 350 nits (options: 250 / 300 / 350 / 400 nits)
Backlight: LED
Viewing Angles (CR=10): 170° (H) / 160° (V)
Response Time (Typ. Tr+Tf): 5 ms
Touch Screen: PCAP 10-point (USB controller) — other options available
Signal Connector: VGA / DVI-D
Power Input: DC 12V
Operating Temperature: 0 ~ 50 ℃
Storage Temperature: -20 ~ 60 ℃
Relative Humidity: 5% ~ 90% RH

Technical specifications

• Dimensions (V x H x T): 415 x 343 x 50 mm
• Pixel Pitch: 0.294 x 0.294 mm
• Contrast Ratio: 1000:1
• Touch options: PCAP, resistive, IR, SAW
• Optional accessories: electromagnetic pen, privacy film
• Designed for 24/7 operation with industrial-grade components
