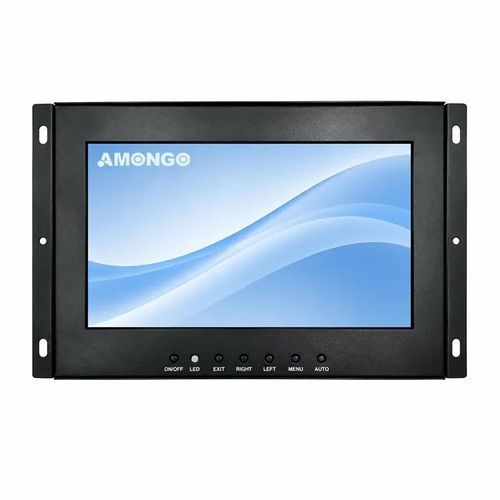

LCD monitor AMG-10IPDB01T1
multitouch screenLED backlightprojected capacitive touchscreen

LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen
LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen
LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen - image - 2
LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen - image - 3
LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen - image - 4
LCD monitor - AMG-10IPDB01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - multitouch screen / LED backlight / projected capacitive touchscreen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, multitouch screen, projected capacitive touchscreen, PCAP touchscreen, LED backlight
Applications
for digital signage, for HMI interface
Display size
10.1"
Resolution
1280 x 800
Mounting
VESA mounting, embedded, rack-mount
Other characteristics
HDMI, USB, DisplayPort, embedded, IP65, waterproof, dust-proof, vandal-proof
Width

216.96 mm
(8.5417 in)

Height

135.6 mm
(5.3386 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

Description
This 10.1" rack-mount industrial LCD monitor AMG-10IPDB01T1 features a 10-point PCAP multi-touch panel and an IP65-rated front panel for protection against water, dust and vandalism. It supports embedded and VESA installation, offers HDMI and DisplayPort inputs, and uses a USB touch controller. The display is suited for continuous operation within the listed environmental ranges.

Key features
  • PCAP multi-touch (10 points)
  • Support for embedded and VESA installation
  • Front panel: IP65 waterproof, vandal-proof and dust-proof
  • Surface hardness: Mohs 7
  • LED backlight, 350 nits brightness
  • Stable operation validated by industrial reliability testing


Typical applications
  • AFC (automatic fare collection)
  • Non-cash payment equipment
  • Kiosk systems


Technical specifications
  • Screen Size: 10.1"
  • Active Display Area (mm): 216.96(H) x 135.6(V)
  • Pixel Pitch (mm): 0.1695(H) x 0.1695(V)
  • Display Mode: Normally Black
  • Display Resolution (pixel): 1280 x 800
  • Contrast Ratio: 800:1
  • Display Color: 16.7M
  • Brightness: 350 nits
  • Backlight: LED
  • Viewing Angles (CR=10): 170(H); 170(V)
  • Response Time (Typ. Tr+Tf): 25 ms
  • Touch Screen: PCAP Touch (10 points)
  • Signal Connector: HDMI / DP
  • Power Input: DC 12V
  • Touch Controller: USB
  • Operating Temperature: -20～70℃ (non-condensation)
  • Storage Temperature: -30～80℃ (non-condensation)
  • Relative Humidity: 5(%RH)～90(%RH)
