LCD monitor AMG-17IPZL01T1

LED backlightinfrared touchscreenindustrial

Product overview

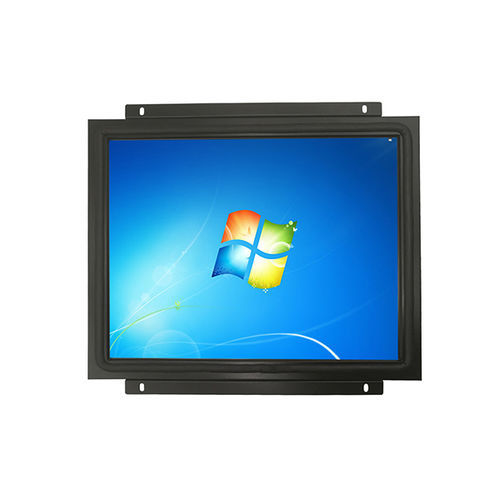

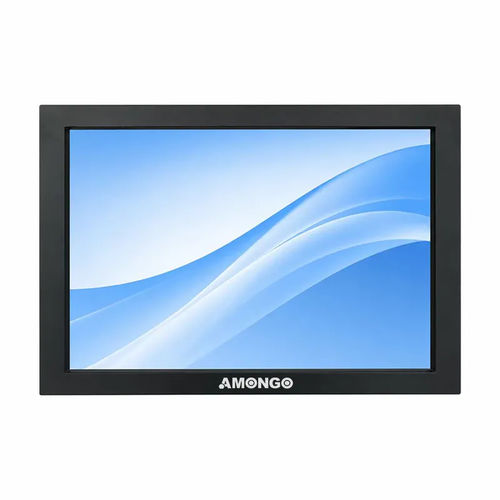

This 17-inch industrial VESA wall-mount LCD monitor (model AMG-17IPZL01T1) features a full-metal enclosure and is designed for continuous operation in industrial environments.

Key features

• Full-metal housing with VESA 75 mounting
• IR touch screen (USB touch controller)
• Ambient light sensor with automatic dimming
• LED backlight, brightness 350 nits
• Inputs: VGA and DVI-D; power: DC 12V
• Wide operating temperature range: -30 to 85°C

Typical applications

• Industrial equipment and HMI panels
• AFC terminals and kiosks
• Logistics cabinets and control cabinets

Specifications

• Model Name: AMG-17IPZL01T1
• Screen size: 17-inch
• Active display area: 337.920 (H) x 270.336 (V) mm
• Pixel pitch: 0.264 (H) x 0.264 (V) mm
• Display mode: Normally white
• Display resolution: 1280 x 1024 pixels
• Display color: 16.7M
• Contrast ratio: 1000:1
• Brightness: 350 nits (light sensor)
• Backlight: LED
• Viewing angles (CR=10): 170° (H); 160° (V)
• Response time (Typ. Tr+Tf): 5 ms
• Touch screen: IR (touch controller: USB)
• Signal connector: VGA / DVI-D
• Power input: DC 12V
• Dimensions (V x H x T): 388.4 x 356.2 x 52.6 mm
• Operating temperature: -30 to 85°C
• Storage temperature: -30 to 85°C
• Relative humidity: 5% RH to 90% RH
• Mounting: VESA 75 / sidebar
