LCD monitor AMG-15IPPC01T4

resistive touch screenLED backlightindustrial

Product overview

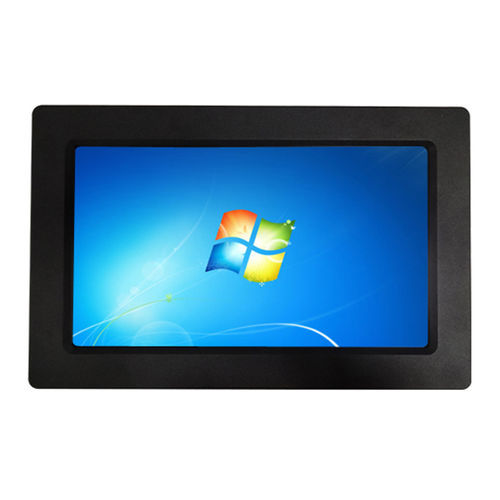

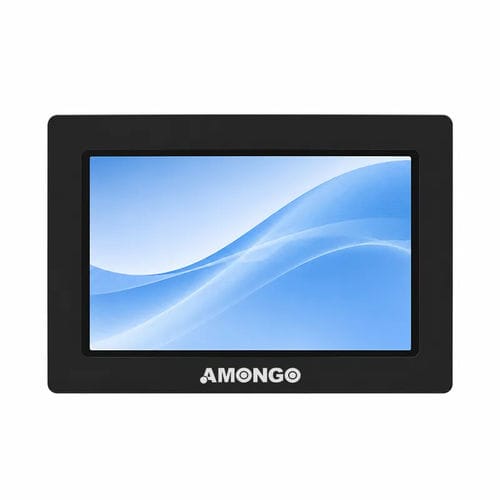

The AMG-15IPPC01T4 by Amongo is a 15.6" panel-mount industrial LCD monitor designed for continuous operation in industrial and commercial environments. It is provided with a resistive touch option and multiple signal interfaces for flexible integration.

Key features

• Aluminum frame panel design for panel mounting
• Wide viewing angles (140° H / 120° V)
• LED backlight with 270 cd/m² brightness
• Resistive touch screen option; multiple touchscreen technologies supported
• IP-rating compliance options and rugged mechanical design for harsh environments

Typical applications

• Industrial equipment HMI
• Railway and transportation systems
• Control panels and kiosks

Specifications

• Model: AMG-15IPPC01T4
• Screen size: 15.6"
• Active display area (mm): 344.16 (H) x 193.59 (V)
• Pixel pitch (mm): 0.17925 (H) x 0.17925 (V)
• Display mode: Normally white
• Resolution: 1920 x 1080 (Full HD)
• Contrast ratio: 400:1
• Display color: 262K
• Brightness: 270 cd/m²
• Backlight: LED
• Viewing angles (CR=10): 140° (H); 120° (V)
• Response time (Typ. Tr+Tf): 8 ms
• Touch screen: Resistive
• Signal connector: VGA / DVI / DC 2.0
• Power input: DC 12V
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -20 ~ 60 °C
• Relative humidity: 5% ~ 90% RH
• Dimensions (W x H x D): 422.4 x 271.7 x 56.7 mm

Technical characteristics

• Intended for 24/7 industrial use
• Flexible touchscreen and I/O configuration for system integration
• Ruggedized mechanical design with available IP protection levels
• Compact panel-mount format for HMI and embedded applications
