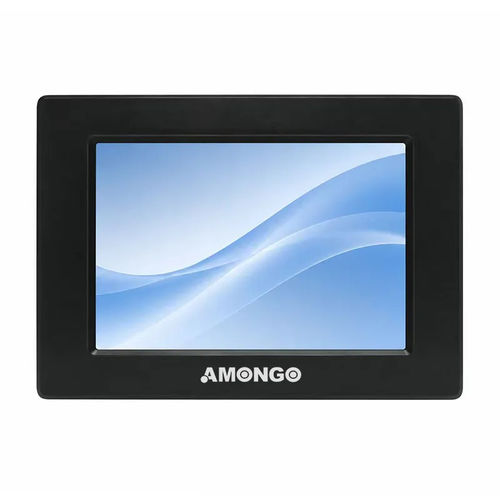

LCD monitor AMG-17IPPC01T1

multitouch screenresistive touch screenLED

Product overview
The industrial-grade panel-mount 17-inch LCD monitor AMG-17IPPC01T1 by Amongo is designed for continuous operation in industrial and commercial environments.

Key features

• PCAP multi-touch option (projected capacitive); support for resistive, IR and SAW touch technologies
• Aluminum frame housing for improved heat dissipation
• Wide viewing angles: 170° horizontal / 160° vertical (CR=10)
• Industrial-grade components suitable for 24/7 operation
• Optional IP-rated front panel, anti-shock and anti-vibration mechanical design
• Customization options for touch, connectors and mounting

Typical applications

• Industrial equipment and machine control
• Railway and transportation systems
• Control rooms and HMI installations

Specifications
Model: AMG-17IPPC01T1
Screen size: 17"
Active display area (mm): 337.920(H) x 270.336(V)
Pixel pitch (mm): 0.264 x 0.264
Display mode: Normally white
Resolution: 1280 x 1024
Contrast ratio: 1000:1
Display color: 16.7M
Brightness: 250 cd/m²
Backlight: LED
Viewing angles (CR=10): 170° (H); 160° (V)
Response time (Tr+Tf): 5 ms
Touch options: PCAP / resistive / IR (optional)
Signal connectors: VGA, DVI
Power input: DC 2.0
Operating temperature: 0 ~ 50 °C
Storage temperature: -20 ~ 60 °C
Relative humidity: 5% ~ 90% RH
Dimensions (V x H x T): 444.6 x 354.6 x 56.7 mm

Technical specifications

• Model: AMG-17IPPC01T1
• Display: 17" 1280 x 1024, 250 cd/m², 16.7M colors
• Backlight: LED
• Viewing angles: 170° / 160° (CR=10)
• Response time: 5 ms (Tr+Tf)
• Inputs: VGA, DVI
• Power: DC 2.0
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -20 ~ 60 °C
• Ingress protection and touch options: configurable
