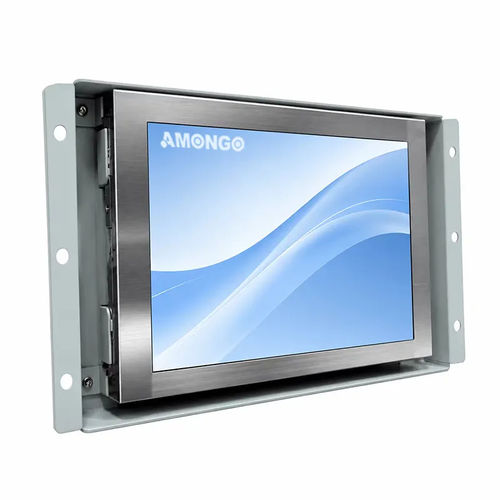

LCD monitor AMG-06OPSK01N1

resistive touch screenLED backlightPCAP touchscreen

Product Overview
This 5.7-inch Wide Temp Industrial LCD Display.

Key features

• Touchscreen is optional such as PCAP, Resistive etc
• Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel
• Easy-to-install with rack mounting enclosures
• Customization service available

Typical applications

• Industrial Equipment
• Railway

Advantages of 5.7 Inch Rack Mount LCD Monitors

• Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for reliable 24/7/365 operation
• Touchscreen options: PCAP, Resistive, etc.
• Robust mechanical design with aluminum metal IP65/NEMA 4 front panel to meet tough environmental conditions
• Easy-to-install with rack mounting enclosures
• Customization service available

Specification
Screen Size: 5.7"
Active Display Area (mm): 115.2(H) x 86.4(V)
Pixel Pitch (mm): 0.18(H)x0.18(V)
Display Mode: Normally white
Display Resolution (pixel): 640x480
Contrast Ratio: 800:1
Display Color: 16.2M
Brightness: 700nits
Backlight: LED
Viewing Angles (CR=10): 160(H);140(V)
Response Time (Typ.Tr+Tf): 25ms
Touch Screen: Optional
Signal Connector: VGA
Power Input: DC 12V
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5(%RH)～90(%RH)

Caractéristiques / Spécifications techniques

• Screen Size: 5.7"
• Active Display Area: 115.2(H) x 86.4(V) mm
• Pixel Pitch: 0.18(H) x 0.18(V) mm
• Display Mode: Normally white
• Resolution: 640 x 480 pixels
• Contrast Ratio: 800:1
• Colors: 16.2M
• Brightness: 700 nits
• Backlight Type: LED
• Viewing Angles: 160° (H) / 140° (V) (CR=10)
• Response Time: 25 ms (Typ. Tr+Tf)
• Touchscreen: Optional (PCAP, Resistive, etc.)
• Signal Connector: VGA
• Power Input: DC 12V
• Operating Temperature Range: -30℃ to 80℃
• Storage Temperature Range: -30℃ to 80℃
• Relative Humidity: 5% to 90% RH
