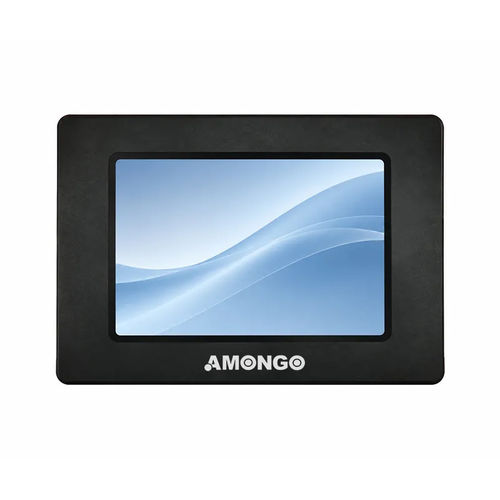

LCD monitor AMG-10IPPC02T2-3

resistive touch screenLED backlightinfrared touchscreen

Product overview
The AMG-10IPPC02T2 is a 10.4-inch industrial panel‑mount touch LCD monitor designed for continuous use in harsh environments. It integrates industrial-grade components and multiple touch technology options to suit machine‑side HMIs, cabinets and outdoor enclosures.

Key features

• 10.4" panel with 800×600 resolution and 400 cd/m² brightness
• Multiple touch options: Resistive standard; PCAP, IR, SAW available
• Panel‑mount form factor for integration into cabinets and control panels
• Wide operating temperature range (-30 to 80 °C) and wide humidity tolerance
• IP-rated sealing, shock and vibration resistance for harsh environments
• VGA and DVI video inputs; DC 12V power
• Customization and configuration services available

Typical applications

• Industrial machinery and factory HMIs
• Transportation and rail equipment
• Logistics cabinets, kiosks and AFC systems
• Outdoor enclosures, control panels and ruggedized terminals

Specifications
Model: AMG-10IPPC02T2
Screen size: 10.4"
Active display area (mm): 211.2 (H) × 158.4 (V)
Display resolution: 800 × 600 pixels
Pixel pitch: 0.264 × 0.264 mm
Display mode: Normally white
Display color: 16.2M (262K option)
Brightness: 400 cd/m²
Contrast ratio: 700:1
Backlight: LED
Viewing angles (CR=10): 160° (H) / 140° (V)
Response time (Typ. Tr+Tf): 30 ms
Touch screen: Resistive (other options available)
Signal connector: VGA, DVI
Power input: DC 12V
Operating temperature: -30 ~ 80 °C
Storage temperature: -30 ~ 80 °C
Relative humidity: 5% ~ 90% RH
Dimensions (V × H × T): 306.6 × 230.1 × 57 mm

Technical specifications

• Model name: AMG-10IPPC02T2
• Screen: 10.4" industrial LCD
• Resolution: 800 × 600 px
• Brightness: 400 cd/m²
• Contrast: 700:1
• Colors: 16.2M / 262K
• Backlight type: LED
• Touch type: Resistive (PCAP/IR/SAW options)
• Video inputs: VGA, DVI
• Power: DC 12V
• Operating temp: -30 °C to 80 °C
• Humidity: 5%–90% RH
• Mechanical size: 306.6 × 230.1 × 57 mm
