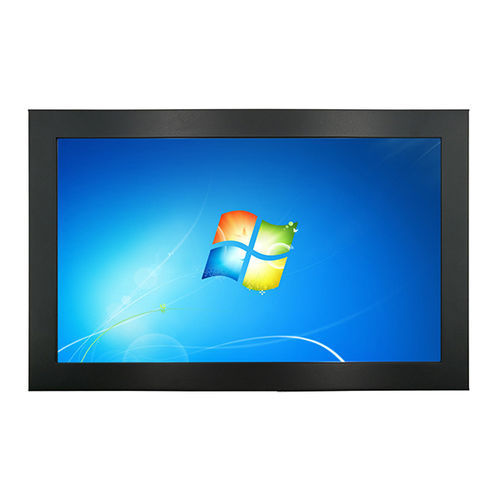

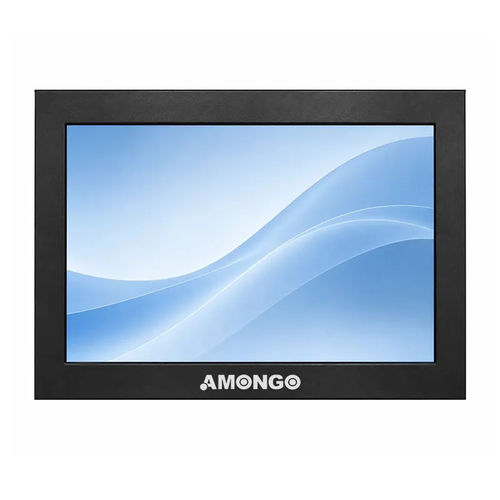

LCD monitor AMG-15IPAL01T1

LED backlight5-wire resistive touch screenfor digital signage

Product overview
The AMG-15IPAL01T1 is a 15.6-inch VESA wall-mount industrial LCD monitor with a 5-wire resistive touch panel and full-metal enclosure. Rear VESA mounting allows secure wall installation. The product is designed for continuous (24/7) operation and front-panel IP65 protection for dust and water resistance.

Key features

• Resistive 5-wire touch screen (USB touch controller)
• Full-metal enclosure with rear VESA mounting
• Front IP65 dust-proof and water-resistant design; scratch-resistant surface
• LED backlight, 300 nits brightness, Full HD 1920×1080
• Signal inputs: VGA, DVI-D; Power input: DC 12V (DC2.0/DC2.5)

Typical applications

• Industrial control panels and machine HMIs
• Kiosks and fitness equipment
• Railway and transport displays
• Public terminals and factory automation

Specifications
Screen size: 15.6"
Active display area (mm): 344.16 (H) x 193.59 (V)
Resolution: 1920 x 1080
Pixel pitch (mm): 0.17925 (H) x 0.17925 (V)
Display mode: Normally black
Display color: 16.7M
Contrast ratio: 800:1
Brightness: 300 nits
Backlight: LED
Viewing angles (CR=10): 170° H / 170° V
Response time (Typ. Tr+Tf): 30 ms
Touch screen: Resistive 5-wire
Signal connector: VGA / DVI-D
Power input: DC 12V (DC2.0 / DC2.5)
Touch controller: USB
Dimensions (V x H x T): 397.5 x 246.8 x 35 mm
Operating temperature: 0 to 50 °C
Storage temperature: -20 to 60 °C
Relative humidity: 5% to 90% RH
Protection rating: IP65 (front)

Model & options

• Model: AMG-15IPAL01T1
• Mounting: Rear VESA holes for wall installation
• Touch options: resistive (5-wire) standard; PCAP, IR available on request
• Optional: brightness/light sensor, custom mechanical or connector configurations
• Manufacturer: Amongo
