LCD monitor AMG-12IPTP01T1
LED backlightcapacitive touch screenPCAP touchscreen

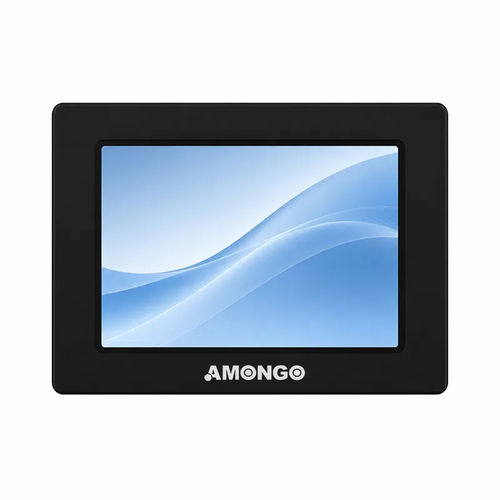

LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen
LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen
LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen - image - 2
LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen - image - 3
LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen - image - 4
LCD monitor - AMG-12IPTP01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / capacitive touch screen / PCAP touchscreen - image - 5
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, PCAP touchscreen, capacitive touch screen, LED backlight
Applications
for industrial machines, for digital signage, for HMI interface, POS
Display size
12.1"
Resolution
1024 x 768
Mounting
VESA mounting, wall-mount
Other characteristics
USB, VGA-DVI port
Width

240 mm
(9.4488 in)

Height

300 mm
(11.811 in)

Thickness

49 mm
(1.929 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

Product overview
The AMG-12IPTP01T1 is a 12.1" industrial VESA wall-mount LCD monitor by Amongo, offered with an optional PCAP capacitive touchscreen and a full-metal enclosure. It is intended for continuous operation in demanding environments and supports rear VESA mounting.

Key features
  • PCAP capacitive touchscreen (USB touch controller)
  • Full-metal enclosure with rear VESA mounting holes
  • Optional touch technologies: PCAP, resistive, IR, SAW
  • LED backlight, brightness 500 cd/m²
  • Resolution 1024 × 768, 16.2M colors
  • Viewing angles 160° (H) × 160° (V)
  • Signal inputs: VGA / DVI (DC 2.0 where specified)
  • Power input: DC 12V
  • Operating temperature: -30～80 ℃; Storage temperature: -30～80 ℃


Typical applications
  • ATMs, VTMs and self-service kiosks
  • Non-cash payment terminals and POS
  • Industrial HMI and control panels
  • Retail information displays and interactive signage


Technical specifications
  • Model Name: AMG-12IPTP01T1
  • Screen Size: 12.1"
  • Active Display Area (mm): 245.76 (H) × 184.32 (V)
  • Pixel Pitch (mm): 0.24 (H) × 0.24 (V)
  • Display Mode: Normally white
  • Display Resolution (pixel): 1024 × 768
  • Contrast Ratio: 700:1
  • Display Color: 16.2M / 262K
  • Brightness: 500 cd/m²
  • Backlight: LED
  • Viewing Angles (CR=10): 160° (H) × 160° (V)
  • Response Time (Typ. Tr+Tf): 35 ms
  • Touch Screen: PCAP (other options available)
  • Signal Connector: VGA / DVI / DC 2.0
  • Power Input: DC 12V
  • Touch Controller: USB
  • Dimensions (V × H × T): 300 × 240 × 49 mm
  • Operating Temperature: -30～80 ℃
  • Storage Temperature: -30～80 ℃
  • Relative Humidity: 5% RH ～ 90% RH
