LCD monitor AMG-08IPZY03T1
resistive touch screenLED backlightPCAP touchscreen

LCD monitor - AMG-08IPZY03T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-08IPZY03T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen
LCD monitor - AMG-08IPZY03T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 2
LCD monitor - AMG-08IPZY03T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 3
LCD monitor - AMG-08IPZY03T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / PCAP touchscreen - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, resistive touch screen, PCAP touchscreen, LED backlight
Applications
industrial, for vehicles
Display size
8.4"
Resolution
800 x 600
Mounting
rack-mount
Other characteristics
high-brightness, aluminum, wide viewing angle, customizable, IP65, NEMA 4
Width

178 mm
(7.0079 in)

Height

255 mm
(10.0394 in)

Thickness

31.5 mm
(1.24 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 85 °C
(185 °F)

Description

Overview

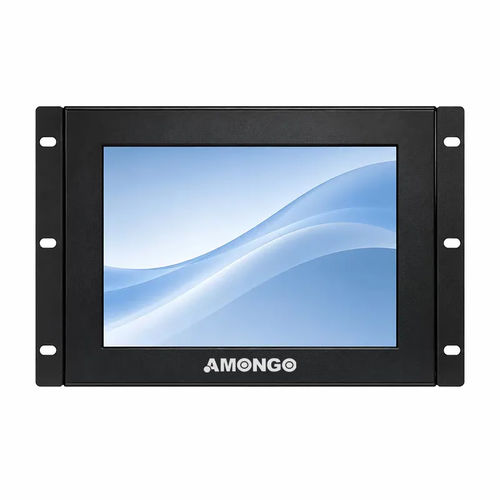

The industrial 8.4-inch rack-mount LCD monitor AMG-08IPZY03T1 from Amongo is designed for harsh environments and rack-mounted equipment.

Key features
  • Optional touch technologies: PCAP, resistive, PCT (10-point)
  • Aluminum metal front panel with rack-mount enclosure
  • Front protection rated IP65 / NEMA 4
  • Industrial-grade components and wide operating temperature range (-30 to 85 °C)
  • High brightness 1000 cd/m² and LED backlight


Typical applications
  • Industrial equipment
  • Railway systems


Advantages
  • Branded LCD panels with wide viewing angles suited for continuous 24/7 operation
  • Multiple touchscreen options to match integration requirements
  • Robust mechanical design for demanding environments
  • Rack-mount enclosures for straightforward installation
  • Customization services available


Technical specifications
  • Model: AMG-08IPZY03T1
  • Screen size: 8.4"
  • Active display area (mm): 170.4 (H) x 127.8 (V)
  • Pixel pitch (mm): 0.213 x 0.213
  • Display mode: Normally white
  • Resolution: 800 x 600 pixels
  • Contrast ratio: 600:1
  • Display color: 262K
  • Brightness: 1000 cd/m²
  • Backlight: LED
  • Viewing angles (CR=10): 150° (H) x 150° (V)
  • Response time (Typ. Tr+Tf): 35 ms
  • Touch screen: PCT Touch (10 points) (optional: PCAP, resistive)
  • Signal connectors: VGA / DVI / USB
  • Power input: DC 2.0
  • Dimensions (V x H x T): 255 x 178 x 31.5 mm
  • Operating temperature: -30 ~ 85 °C
  • Storage temperature: -30 ~ 85 °C
  • Relative humidity: 5% ~ 90% RH
