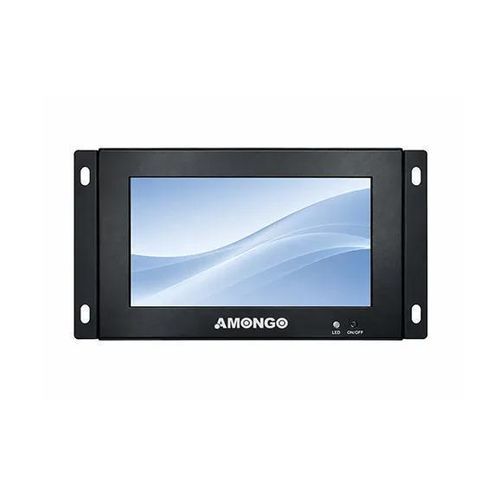

TFT-LCD monitor AMG-07IPDB01T1

multitouch screenmulti-touch screenLED backlight

Product overview
The AMG-07IPDB01T1 is a 7" rack-mount industrial LCD monitor designed for embedded systems and kiosk enclosures. It integrates a PCAP 10-point touch panel, HDMI/DisplayPort inputs and DC 12V power for straightforward system integration in industrial environments.

Key features

• 7" TFT LCD, resolution 1024×600, 16.7M colors
• PCAP multi-touch (10-point) with USB touch controller
• Rack mount and VESA-compatible installation
• Surface hardness Mohs 7 for scratch resistance
• LED backlight, brightness 350 nits, contrast ratio 800:1
• Wide operating temperature range: -20 to 60 °C (non-condensing)
• Signal inputs: HDMI and DisplayPort; power input DC 12V

Typical applications

• Automatic fare collection (AFC) terminals
• Non-cash payment and vending equipment
• Self-service kiosks and information terminals
• Industrial HMI and control panels

Benefits

• Capacitive touch for accurate multi-touch input in public and industrial settings
• Robust front surface and mechanical design to withstand frequent use
• Flexible installation options: rack enclosures or VESA mounts
• Low-voltage DC power simplifies integration into existing systems
• Wide temperature and humidity tolerance for harsh environments

Specification
Screen size: 7"
Active display area (mm): 153.6 (H) x 90.0 (V)
Pixel pitch (mm): 0.15 (H) x 0.15 (V)
Display mode: Normally White
Resolution (pixels): 1024 x 600
Contrast ratio: 800:1
Display color: 16.7M
Brightness: 350 nits
Backlight: LED
Viewing angles (CR=10): 150° (H); 145° (V)
Response time (Typ. Tr+Tf): 16 ms
Touch screen: PCAP touch (10 points)
Signal connector: HDMI / DisplayPort
Power input: DC 12V
Touch controller: USB
Operating temperature: -20 to 60 °C (non-condensing)
Storage temperature: -30 to 70 °C (non-condensing)
Relative humidity: 5% to 90% RH
Surface hardness: Mohs 7

Technical specifications

• Model: AMG-07IPDB01T1
• Screen size: 7"
• Resolution: 1024 x 600
• Brightness: 350 nits
• Contrast ratio: 800:1
• Viewing angles: 150° horizontal / 145° vertical
• Touch: PCAP 10-point, USB controller
• Connectors: HDMI / DisplayPort
• Power: DC 12V input
• Operating temperature: -20 to 60 °C (non-condensing)
• Storage temperature: -30 to 70 °C (non-condensing)
• Relative humidity: 5% to 90% RH
• Surface hardness: Mohs 7
• Backlight: LED
