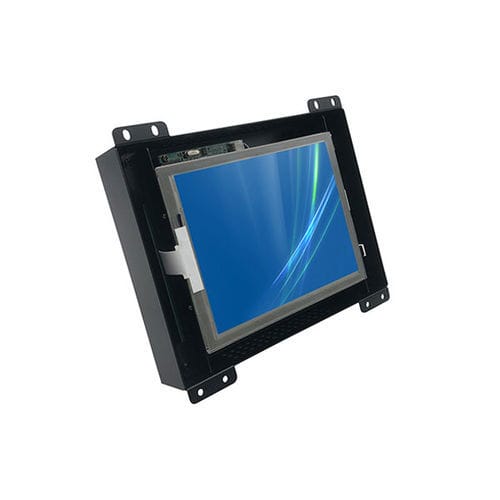

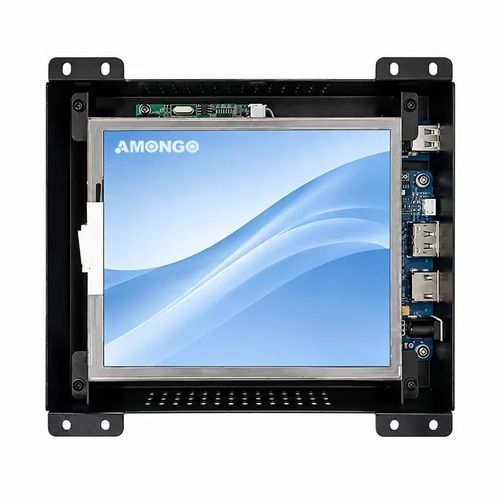

LCD monitor AMG-06IPPR01T1
LED backlight5-wire resistive touch screenfor displays

LCD monitor - AMG-06IPPR01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / 5-wire resistive touch screen / for displays
LCD monitor - AMG-06IPPR01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / 5-wire resistive touch screen / for displays
LCD monitor - AMG-06IPPR01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / 5-wire resistive touch screen / for displays - image - 2
LCD monitor - AMG-06IPPR01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / 5-wire resistive touch screen / for displays - image - 3
LCD monitor - AMG-06IPPR01T1 - AMONGO Display Technology(ShenZhen)Co.,LTD - LED backlight / 5-wire resistive touch screen / for displays - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, 5-wire resistive touch screen, LED backlight
Applications
for industrial machines, for displays
Display size
6.5"
Resolution
640 x 480
Mounting
open-frame, rack-mount
Other characteristics
HDMI, high-brightness, DisplayPort, sunlight-readable, compact, embedded, highly reliable
Width

132.48 mm
(5.2157 in)

Height

99.36 mm
(3.9118 in)

Operating temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

Product Overview
The open-frame, rack-mount industrial touch LCD monitor AMG-06IPPR01T1 is designed for demanding industrial environments and embedded applications. It provides a compact 6.5" display with high brightness for improved visibility in varied lighting conditions.

Key features
  • Resistive touch (5-wire)
  • Supports embedded and sidebar installation
  • High brightness, sunlight readable (800 nits)
  • DisplayPort (DP) and HDMI inputs
  • Qualified through industrial reliability testing


Typical applications
  • AFC systems
  • Non-cash equipment
  • Interactive kiosks


Specification
  • Screen size: 6.5"
  • Active display area (mm): 132.48 (H) x 99.36 (V)
  • Pixel pitch (mm): 0.207 (H) x 0.207 (V)
  • Display mode: Normally White
  • Resolution: 640 x 480
  • Contrast ratio: 600:1
  • Display color: 16.2M / 262K
  • Brightness: 800 nits
  • Backlight: LED
  • Viewing angles (CR=10): 160° (H); 140° (V)
  • Response time (Tr+Tf): 25 ms
  • Touch screen: Resistive touch (5-wire)
  • Signal connector: HDMI / DP
  • Power input: DC 12V
  • Touch controller: USB
  • Operating temperature: -30 ~ 80℃ (non-condensing)
  • Storage temperature: -30 ~ 80℃ (non-condensing)
  • Relative humidity: 5% RH ～ 90% RH
