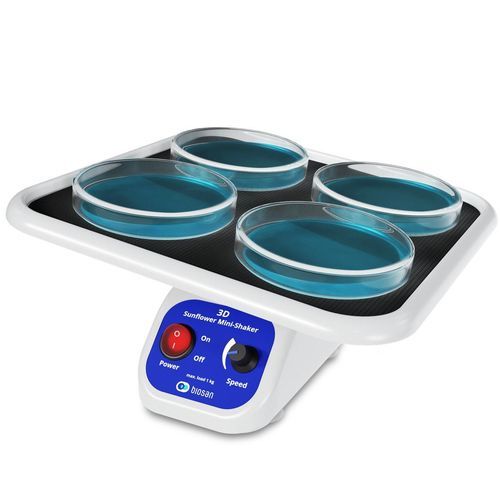

Compact vibrating table 3D Sunflower

Description
Sunflower 3D Mini-Shaker provides adjustable, smooth three-dimensional rotation of the platform for controlled mixing of samples. Designed for mixing blood samples, minigel staining and destaining, sample washing and blot hybridization reactions. The unit is compact with low energy consumption. Direct‑drive brushless motor permits continuous operation up to 168 hours and ensures reliable service over 2 years. A non-slip, heat-resistant silicone mat is supplied; the platform accepts an optional dimpled PDM mat to secure tubes of various sizes. Suitable for use in cold rooms and incubators at ambient temperatures from +4°C to +40°C.

Applications

• Mixing blood samples in tubes
• Minigel staining and destaining
• Sample washing and preparation
• Blot hybridization reactions

Key features

• Adjustable three-dimensional smooth platform rotation
• Direct drive with brushless motor for extended continuous operation
• Compact footprint and low power consumption
• Non-slip, heat-resistant silicone mat supplied
• Compatible with optional dimpled PDM mat for multiple tube sizes
• Operable in cold rooms and incubators (+4°C to +40°C)

Technical specifications

• Speed control range: 5–60 rpm
• Fixed tilt angle: 7°
• Direct drive mechanism: yes
• Maximum continuous operation time: 168 h
• Maximum load: 1 kg
• Platform working area: 215 × 215 mm
• Overall dimensions (W × D × H): 235 × 235 × 140 mm (with platform)
• Weight: 1.2 kg
• Input current / power consumption: 12 V, 260 mA / 3.1 W
• External power supply: AC 100–240 V input, 50/60 Hz; DC 12 V output

Accessories

• Optional PDM dimpled mat to secure tubes of different sizes
