Centrifuge for chemical applications LMC-56

laboratoryfor biotechnologyfor microplates

Description

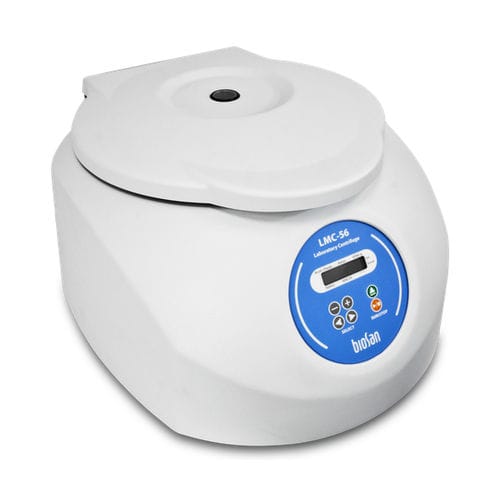

LMC-56 is a benchtop low-speed laboratory centrifuge designed for routine sedimentation, centrifugation and sample collection. It accepts tubes, blood collection systems, gel cards, microtest tubes and ELISA/microplates. The unit features a metal protective housing and metal lid for secure operation, easy maintenance and broad applicability in medical, biochemical, chemical and industrial laboratories.

Features

• Intuitive input of centrifugation parameters with simultaneous display of set and actual values.
• Safety functions: metal housing and lid, automatic stop on imbalance, lid lock during operation.
• Rotor imbalance automatic diagnostics (emergency stop and imbalance indication).
• Automatic rotor detection with active speed limitation.
• Maximum speed 6,000 rpm (3,750 × g); microplate mode up to 2,000 rpm (560 × g).
• Wide choice of rotors and adapters — up to 13 rotor options.
• Improved chamber design to reduce sample heating during runs.
• Multiple acceleration/deceleration modes, including deceleration without forced braking.
• Speed programmable in rpm or relative centrifugal force (RCF).

Applications
Compatible with tubes, blood collection systems, gel cards, microtest tubes and ELISA/microplates; suitable for medical diagnostics, biochemical and chemical assays, industrial sample preparation and general laboratory use.

Technical specifications

• Speed range (tubes): 100–6,000 rpm (up to 3,750 × g)
• Speed range (microplates): 100–2,000 rpm (up to 560 × g)
• Speed resolution: 100 rpm
• Time setting: 1–90 min or continuous (1 min increments)
• Timer sound signal: yes
• Rotor imbalance diagnostics: automatic stop and “IMBALANCE” warning
• Rotor detection: yes
• Display: LCD, 2 × 16 characters
• Chamber diameter: 355 mm
• Dimensions (W × D × H): 560 × 480 × 315 mm
• Weight: 16.5 kg
• Nominal voltage: 230 V, 50/60 Hz or 120 V, 50/60 Hz
• Power consumption: 320 W (230 V) / 330 W (120 V)
