UV disinfection unit UVT-S-AR

germicidal lampUVCfor laboratory

Overview

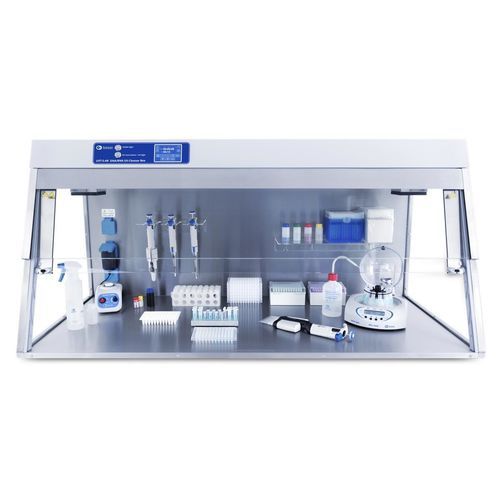

The Biosan UVT-S-AR is a benchtop DNA/RNA UV-cleaner workstation designed to create a clean, contamination-free environment for PCR setup and other nucleic acid workflows. It combines an open 254 nm UV-C lamp for surface and air disinfection with a patented UV air recirculator that irradiates internal air continuously, processing the cabinet volume ~100 times/hour without exposing users to UV.

Operation & Lighting
A glove-compatible 3.5" touchscreen digital control panel enables intuitive programming of UV exposure cycles and real-time lamp life monitoring. A low-energy 12W LED daylight lamp provides bright task illumination. Transparent glass side panels improve visibility and operator comfort.

Key Features

• Dual UV decontamination: open 254 nm UV-C lamp + patented UV air recirculator
• Open UV-C lamps: 2 × 30 W bactericidal UV-C (TUV 30W 1SL/25)
• UV recirculator: 1 × 30 W (recirculation efficiency >99% per hour)
• High UV radiation level: 18 mW/cm2/sec (λ = 253.7 nm), ozone-free
• Safety: automatic UV shut-off when protective screen is opened; UV-protection film >96%
• Ergonomic, durable construction: metal frame, stainless-steel interior, UV-resistant materials
• Digital touchscreen for timer control, lamp status and maintenance alerts
• Built-in power outlets and cable inlet for small lab devices (3 sockets, max combined 1000 W)
• Low noise, low energy consumption with quiet fan system
• Compatible with T-4L mobile table, LF-1 drawer, LT-150 / LT-180 adjustable desks

Specification (table)
Digital display & lamp life timer: yes
Display: 3.5", glove compatible
Rear wall: stainless steel; sides and front: glass (EUROGLASS, Germany)
Working surface: stainless steel
Open UV-lamps: 2 × 30 W built-in bactericidal UV-C (TUV 30W 1SL/25)
UV radiation level: 18 mW/cm2/sec (λ = 253.7 nm), ozone-free
Direct UV digital timer: 1 min–24 hrs / non–stop (1 min increments)
UV-recirculator: 1 × 30 W (efficiency >99%/h)
Daylight lamp: 1 × LED-12W
Side panel thickness: 4 mm; upper front panel: 8 mm; screen: 5 mm
Optical transmission: 95%
UV protection: >96% (UV-protection film)
Working area: 1210 × 500 mm; opening (screen raised): 1210 × 190 mm
Safety: automatic open-UV shut-off when screen opened
Power outlets inside: 3 built-in sockets max. 1000 W and cable inlet
Overall dimensions (W×D×H): 1250 × 600 × 590 mm
Weight (net/gross): 51 / 62 kg
Power consumption: 113 W; Voltage: 100–240 V, 50/60 Hz
Optional: T-4L table, LF-1 drawer, LT-150 / LT-180 desks

Technical specifications

• Model: UVT-S-AR
• Open UV-lamps: 2 × 30 W UV-C (TUV 30W 1SL/25)
• UV-recirculator: 1 × 30 W
• UV radiation: 18 mW/cm2/sec (253.7 nm), ozone-free
• Timer range: 1 min–24 hrs or continuous
• LED illumination: 1 × 12 W
• Materials: stainless-steel rear and working surface; glass sides/front (EUROGLASS)
• Protection film: >96% UV protection
• Sockets: 3 internal, combined max. 1000 W
• Dimensions & weight: 1250 × 600 × 590 mm; 51 / 62 kg
